Part Details | STRAIGHT FLUTE DRILL
5133-01-647-9424 An end cutting tool having one or more cutting edges, and having straight flutes or grooves adjacent thereto for the admission of coolant and ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified) and DRILL, FLAT, RAILWAY RAIL. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Alternate Parts: 614066, 5133-01-647-9424, 01-647-9424, 5133016479424, 016479424
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | SEP 08, 2015 | 01-647-9424 | 05236 ( DRILL, STRAIGHT FLUTE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT ROUND

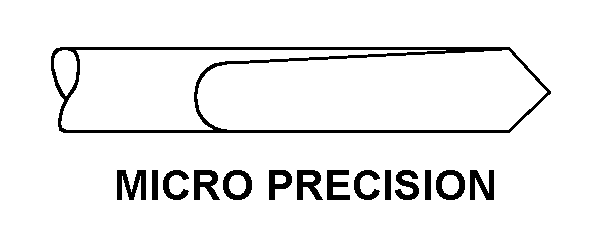

MICRO PRECISION
Cross Reference | NSN 5133-01-647-9424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 614066 | 97853 | STARLITE INDUSTRIES INCDBA STARLITEINDUSTRIES |
Technical Data | NSN 5133-01-647-9424
| Characteristic | Specifications |
|---|---|
| CUTTING END STYLE | MICRO PRECISION |
| SHANK STYLE | STRAIGHT ROUND |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.1406 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| POINT TYPE | CONVENTIONAL |
| POINT ANGLE | 74.0 DEGREES NOMINAL |
