Part Details | HAND DIE HEAD AND DIE
5136-01-473-9986 A device designed to be mounted in a hand operated diestock for cutting external threads. It includes the die head and die(s) but does not include the diestock. See also THREAD CUTTER, DIE HEAD, HAND.
Alternate Parts: 37380 RIDGID, 37380, 5136-01-473-9986, 01-473-9986, 5136014739986, 014739986
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 20, 2000 | 01-473-9986 | 13386 ( DIE HEAD AND DIE, HAND ) |
REFERENCE DRAWINGS & PICTURES

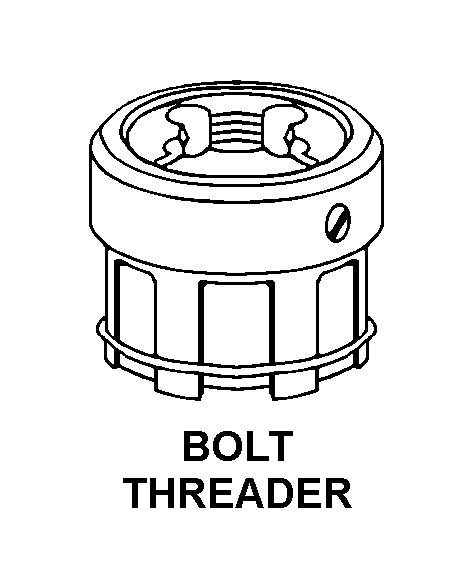

BOLT THREADER
Cross Reference | NSN 5136-01-473-9986
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37380 RIDGID | 00NS2 | KIPPER TOOL COMPANY |
| 37380 | 50893 | RIDGE TOOL COMPANY |
Technical Data | NSN 5136-01-473-9986
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BOLT THREADER |
| MATERIAL AND LOCATION | STEEL OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-18 NPT |
| THREAD DIRECTION | RIGHT-HAND |
| END ITEM IDENTIFICATION | RIDGE TOOL CO. MODEL 12-R RATCHETING PIPE THREADER |
