Part Details | PLUMB BOB
5210-00-889-3208 A small heavy weight with some means of attaching a line at one end. It is used for finding the vertical or perpendicular line to a horizontal plane.
Alternate Parts: GGGP501, GGG-P-501, GGGP501 TY3CLA, GGG-P-501 TY3CLA, 5210-00-889-3208, 00-889-3208, 5210008893208, 008893208
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1963 | 00-889-3208 | 05154 ( PLUMB BOB ) |
REFERENCE DRAWINGS & PICTURES

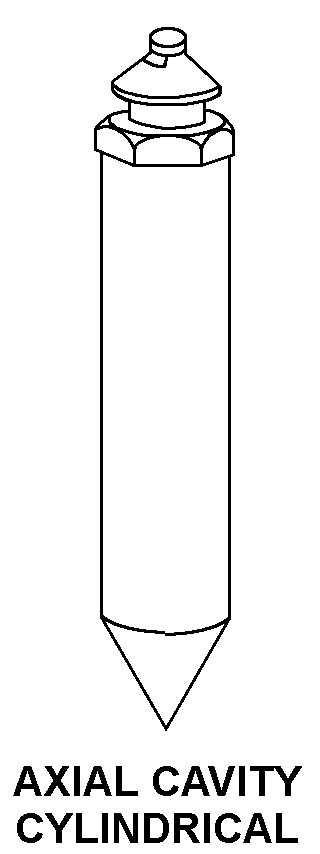

AXIAL CAVITY CYLINDRICAL
Cross Reference | NSN 5210-00-889-3208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-P-501 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-501 TY3CLA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5210-00-889-3208
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| BODY TYPE | HOLLOW |
| MERCURY FILLED FEATURE | INCLUDED |
| STYLE DESIGNATOR | AXIAL CAVITY CYLINDRICAL |
| WEIGHT | 3.500 OUNCES |
| TOP REMOVABILITY | REMOVABLE |
| TOP ADJUSTABILITY | NONADJUSTABLE |
| POINT HARDNESS DESIGNATION | HARDENED |
| POINT REMOVABILITY | REMOVABLE |
| ACCESSORY COMPONENTS AND QUANTITY | 1 LINE |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND A CLASS |
