Part Details | DIAL INDICATOR
5210-01-291-0280 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Alternate Parts: 711LPSZ, 5210-01-291-0280, 01-291-0280, 5210012910280, 012910280
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | DEC 22, 1988 | 01-291-0280 | 06275 ( INDICATOR, DIAL ) |
REFERENCE DRAWINGS & PICTURES

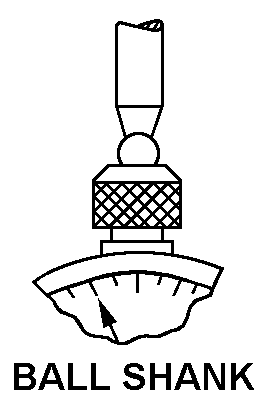

BALL SHANK
REGULAR
Cross Reference | NSN 5210-01-291-0280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 711LPSZ | 57163 | L.S. STARRETT COMPANY, THEDBA COORDINATE MEASURING MACHINE |
Technical Data | NSN 5210-01-291-0280
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.030 INCHES |
| GRADUATION UNIT | 0.00050 INCHES |
| DIAL MARKING | 0-15-0 |
| OVERALL DIAMETER | 0.938 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | EXTENSION ARM END |
| MOUNTING STYLE | BALL SHANK |
| CONTACT POINT ACTION TYPE | SWIVEL |
| CONTACT POINT STYLE DESIGNATOR | 3 REGULAR |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | UNIVERSAL FRICTION HOLDER 1; UNIVERSAL SHANK 1 |
| SPECIAL FEATURES | SHADED DIAL |
