Part Details | PLAIN ADJUSTABLE SNAP GAGE
5220-00-312-3351 A gage used for the control of specified external dimensions. It consists of a frame and gaging members such as buttons, pins, blades and anvil. The gaging members may be set and locked to specified maximum and minimum limits within the given size range of the gage.
Alternate Parts: 300P11, 5220-00-312-3351, 00-312-3351, 5220003123351, 003123351
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | OCT 31, 1973 | 00-312-3351 | 15350 ( GAGE, SNAP, PLAIN ADJUSTABLE ) |
REFERENCE DRAWINGS & PICTURES

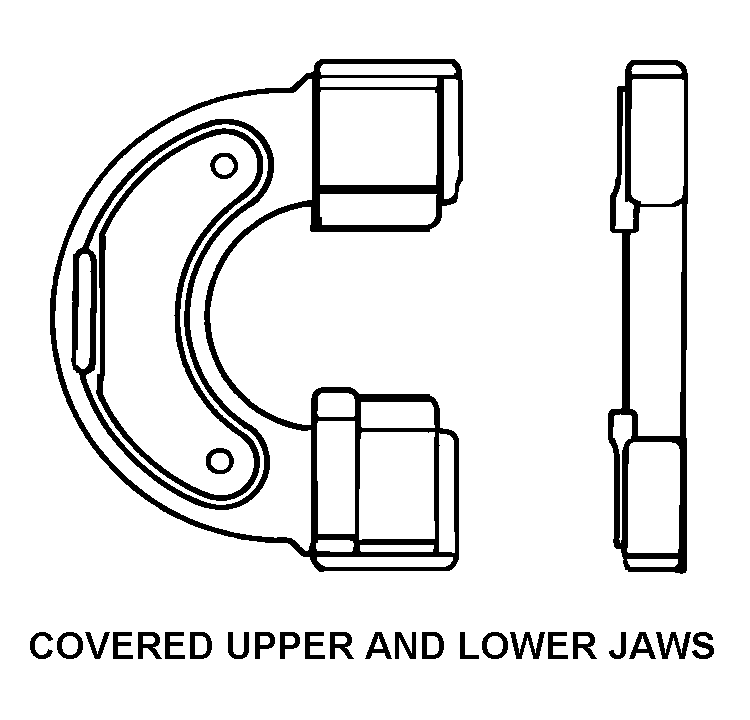

COVERED UPPER AND LOWER JAWS
Cross Reference | NSN 5220-00-312-3351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300P11 | 21938 | MAHR FEDERAL INC. |
Technical Data | NSN 5220-00-312-3351
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COVERED UPPER AND LOWER JAWS |
| GAGING MEMBER NAME AND STYLE NUMBER | 2 BUTTON |
| GAGING MEMBER QUANTITY | 1 |
