Part Details | TAPPING SCREW
5305-01-190-4555 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Alternate Parts: 5740567, 24419, 5305-01-190-4555, 01-190-4555, 5305011904555, 011904555
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 27, 1984 | 01-190-4555 | 41756 ( SCREW, TAPPING ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON
CROSS RECESS TYPE II

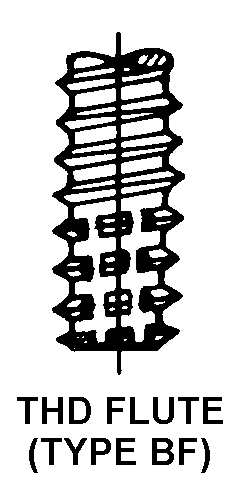

THD FLUTE (TYPE BF)
Cross Reference | NSN 5305-01-190-4555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5740567 | 34623 | AM GENERAL LLC |
| 24419 | 84760 | STANADYNE CORPORATIONDBA STANADYNE DIESEL SYSTEMS |
Technical Data | NSN 5305-01-190-4555
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | THD FLUTE (TYPE BF) |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.073 INCHES |
| FASTENER LENGTH | 0.125 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.028 INCHES MINIMUM AND 0.038 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.125 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 1 CROSS RECESS TYPE II |
