Part Details | INTERNALLY RELIEVED BODY BOLT
5306-00-103-6914 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Alternate Parts: 5544494001, 554-4494-001, 5544494001, 554-4494-001, 5306-00-103-6914, 00-103-6914, 5306001036914, 001036914
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | JUN 12, 1968 | 00-103-6914 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
REFERENCE DRAWINGS & PICTURES

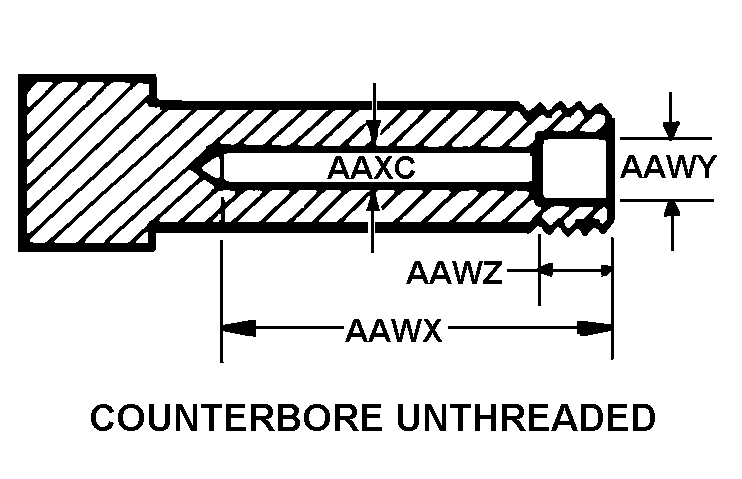

COUNTERBORE UNTHREADED

Cross Reference | NSN 5306-00-103-6914
Part Number | Cage Code | Manufacturer |
---|---|---|
554-4494-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
554-4494-001 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5306-00-103-6914
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNF |
NOMINAL THREAD DIAMETER | 0.250 INCHES |
THREAD QUANTITY PER INCH | 28 |
THREAD CLASS | 2A |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 1.250 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
FASTENER LENGTH | 1.90625 INCHES NOMINAL |
MINIMUM TENSILE STRENGTH | 190000 POUNDS PER SQUARE INCH |
STYLE DESIGNATOR | A COUNTERBORE UNTHREADED |
CONCENTRIC HOLE DEPTH | 1.34375 INCHES MINIMUM AND 1.40625 INCHES MAXIMUM |
CONCENTRIC HOLE DIAMETER | 0.184 INCHES MINIMUM AND 0.186 INCHES MAXIMUM |
HEAD DIAMETER | 0.312 INCHES NOMINAL |
HEAD HEIGHT | 0.250 INCHES NOMINAL |
