Part Details | PLATE SELF-LOCKING NUT
5310-00-048-7447 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: 184001, 184001, 184001, 5310-00-048-7447, 00-048-7447, 5310000487447, 000487447
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-048-7447 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

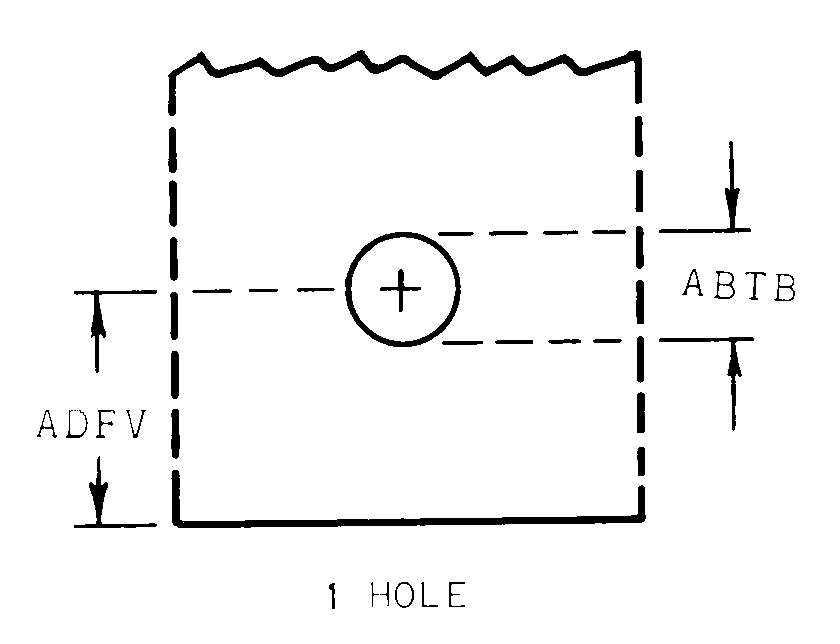

REFERENCE DRAWINGS & PICTURES
PLATE
1 HOLE
Cross Reference | NSN 5310-00-048-7447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 184001 | 74445 | H-K CONNECTICUT HOLDING COMPANY |
| 184001 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 184001 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5310-00-048-7447
| Characteristic | Specifications |
|---|---|
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLATE |
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 36.0 ROCKWELL C MAXIMUM |
| NUT LENGTH | 0.960 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.260 INCHES NOMINAL |
| NUT HEIGHT | 0.250 INCHES NOMINAL |
| PLATE THICKNESS | 0.066 INCHES NOMINAL |
| PLATE WIDTH | 0.510 INCHES NOMINAL |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 1 HOLE |
| MOUNTING HOLE DIAMETER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.690 INCHES MINIMUM AND 0.710 INCHES MAXIMUM |
