Part Details | BLIND RIVET PLAIN NUT
5310-00-049-9281 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Alternate Parts: 8675431, 5310-00-049-9281, 00-049-9281, 5310000499281, 000499281
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-049-9281 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
REFERENCE DRAWINGS & PICTURES
PAN NO. 2

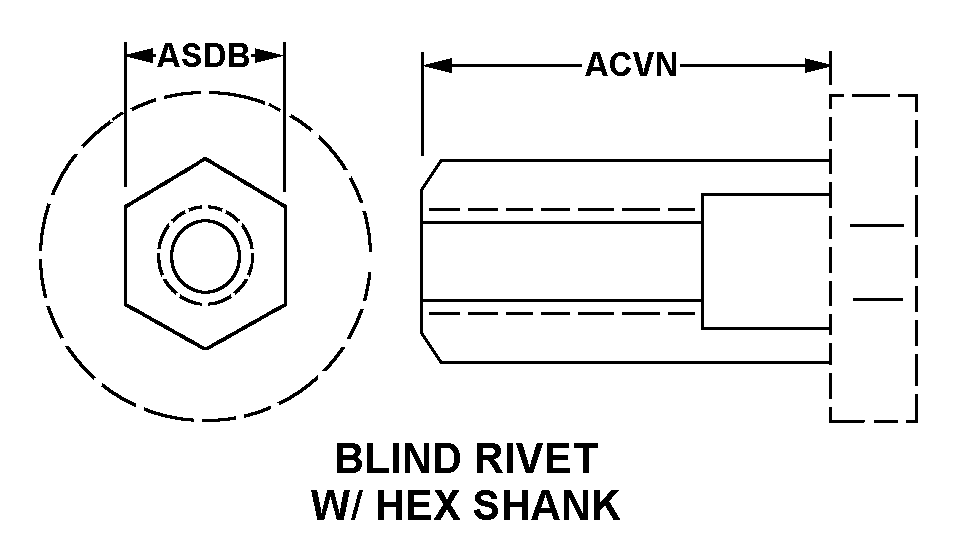

BLIND RIVET W/HEX SHANK
Cross Reference | NSN 5310-00-049-9281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8675431 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-049-9281
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | BLIND RIVET W/HEX SHANK |
| NUT LENGTH | 0.515 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| NUT GRIP RANGE | +0.515 TO +0.531 INCHES |
| HEAD STYLE | 3 PAN NO. 2 |
| HEAD HEIGHT | 0.110 INCHES NOMINAL |
| OUTSIDE WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| SHANK END TYPE | OPEN |
| SPECIAL FEATURES | HOLE 0.063 IN. PORM 0.001 IN. DIA,LOCATED 0.250 IN. FROM SHANK END; 63MICROINCH AA FINISH ON SHANK |
| CRITICALITY CODE JUSTIFICATION | FEAT |
