Part Details | WELDING PLAIN NUT
5310-00-050-0274 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: MS271289, MS27128-9, 5310-00-050-0274, 00-050-0274, 5310000500274, 000500274
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-050-0274 | 15885 ( NUT, PLAIN, WELDING ) |

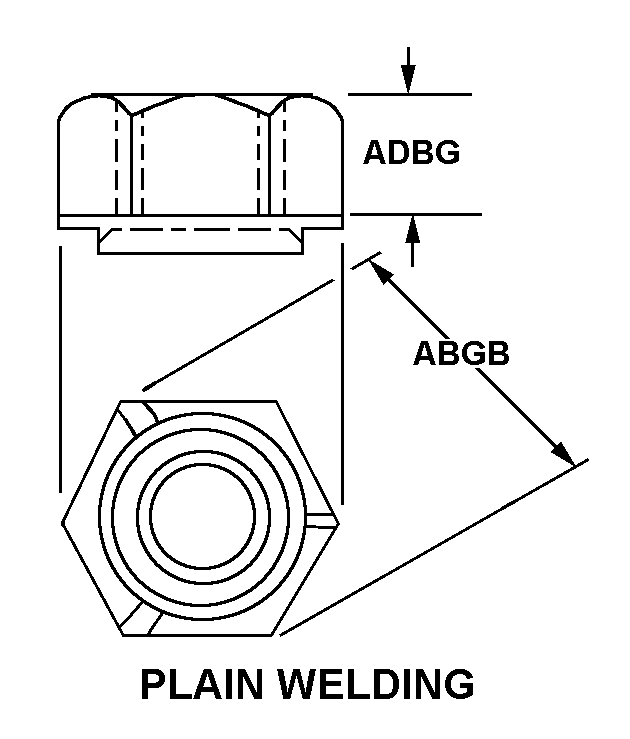

REFERENCE DRAWINGS & PICTURES
PLAIN WELDING
Cross Reference | NSN 5310-00-050-0274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27128-9 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5310-00-050-0274
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| WIDTH ACROSS CORNERS | 0.884 INCHES MAXIMUM |
| NUT THICKNESS | 0.330 INCHES MAXIMUM |
