Part Details | WELDING PLAIN NUT
5310-00-050-3477 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 9F6445, CV136818, 9F6445, 9F-6445, 9F6445, 503477, 9F6445, 9F6445, 5310-00-050-3477, 00-050-3477, 5310000503477, 000503477
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-050-3477 | 15885 ( NUT, PLAIN, WELDING ) |
REFERENCE DRAWINGS & PICTURES

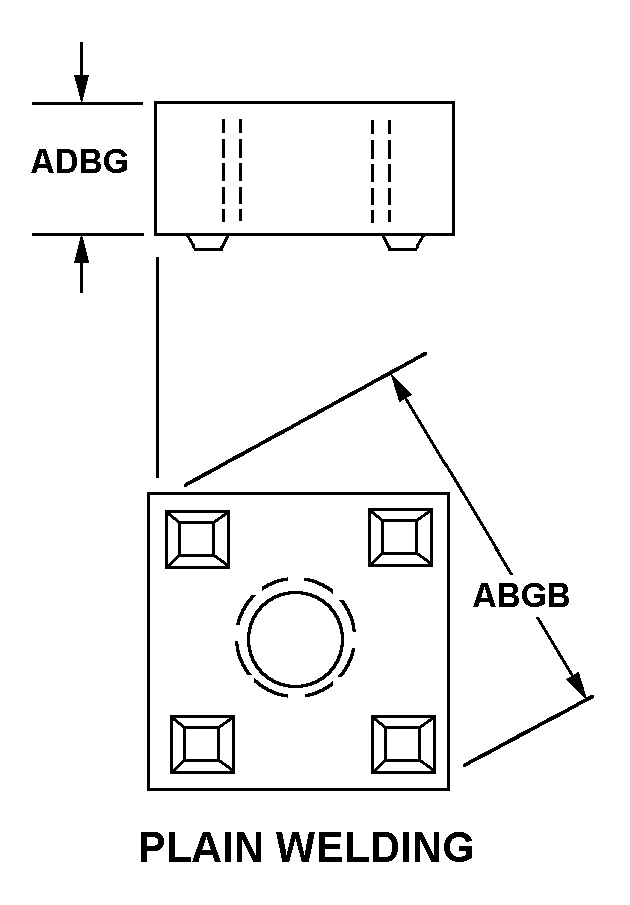

PLAIN WELDING
Cross Reference | NSN 5310-00-050-3477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9F6445 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| CV136818 | U8468 | FINNING UK LTD |
| 9F-6445 | U8468 | FINNING UK LTD |
| 9F6445 | ZF912 | HASTINGS DEERING (AUST) PTY LTD |
| 503477 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 9F6445 | ZY243 | WESTRAC PTY LTD |
| 9F6445 | ZA045 | WILLIAM ADAMS PTY LTD |
Technical Data | NSN 5310-00-050-3477
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT THICKNESS | 0.156 INCHES NOMINAL |
