Part Details | WING PLAIN NUT
5310-00-050-3620 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: 503620, 5310-00-050-3620, 00-050-3620, 5310000503620, 000503620
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-050-3620 | 01862 ( NUT, PLAIN, WING ) |

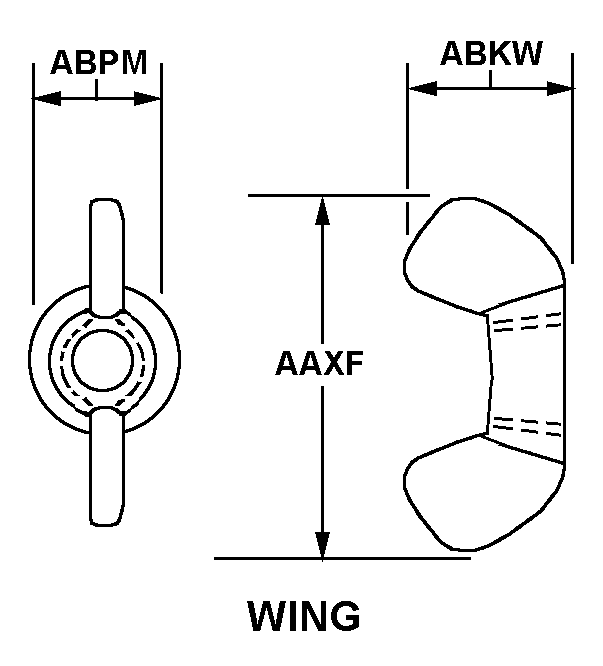

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-050-3620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503620 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
Technical Data | NSN 5310-00-050-3620
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 2.969 INCHES NOMINAL |
| OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| BODY DIAMETER | 1.000 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
