Part Details | FINISHING WASHER
5310-00-050-9281 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Alternate Parts: 2W26A416, 5310-00-050-9281, 00-050-9281, 5310000509281, 000509281
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-050-9281 | 15932 ( WASHER, FINISHING ) |

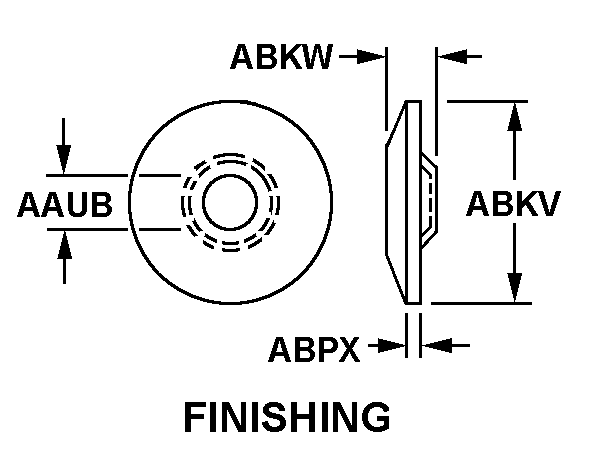

REFERENCE DRAWINGS & PICTURES
FINISHING
Cross Reference | NSN 5310-00-050-9281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2W26A416 | 43999 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5310-00-050-9281
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FINISHING |
| HOLE DIAMETER | 0.260 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.723 INCHES MINIMUM AND 0.729 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.002 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
