Part Details | SHEET SPRING NUT
5310-00-052-7024 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: 1104412, 11044-12, 9018122, 5310-00-052-7024, 00-052-7024, 5310000527024, 000527024
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 18, 1967 | 00-052-7024 | 01865 ( NUT, SHEET SPRING ) |

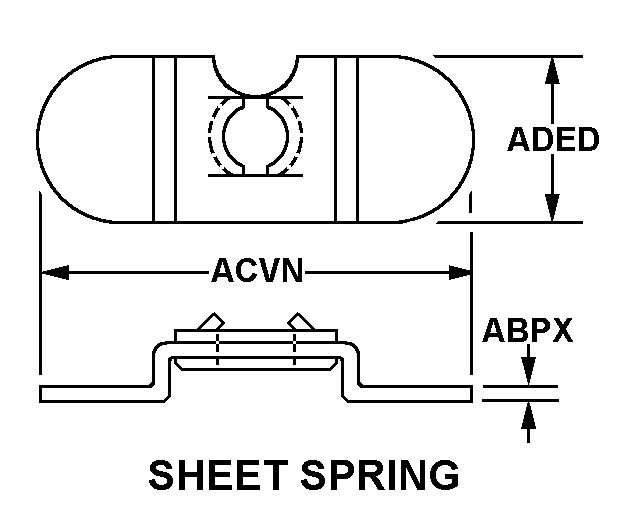

REFERENCE DRAWINGS & PICTURES
SHEET SPRING
Cross Reference | NSN 5310-00-052-7024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11044-12 | 94222 | SOUTHCO, INC. |
| 9018122 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5310-00-052-7024
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.188 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| NUT LENGTH | 1.062 INCHES NOMINAL |
| NUT WIDTH | 0.500 INCHES NOMINAL |
| NUT MOUNTING PROVISION | WELDING RECESS |
