Part Details | CLINCH SELF-LOCKING NUT
5310-00-053-1366 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Alternate Parts: 515618, 9902894, 990289-4, 1087050004, 10870500-04, 450730006, 45073-0006, 9335C30053, 9335C3005-3, 1979457P2, 247ASC0402006, 247AS-C0402-006, 2630022004, 263-002-2004, 698066, 698-066, LKS4402EF, LKS-440-2EF, LKS4402, LKS440-2, 04MN0097, 04MN009-7, 4132686, 413268-6, FDN0010018, FD-N0010-018, 4593800501, 45938-005-01, P4593800501, P45938-005-01, 5310-00-053-1366, 00-053-1366, 5310000531366, 000531366
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-053-1366 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

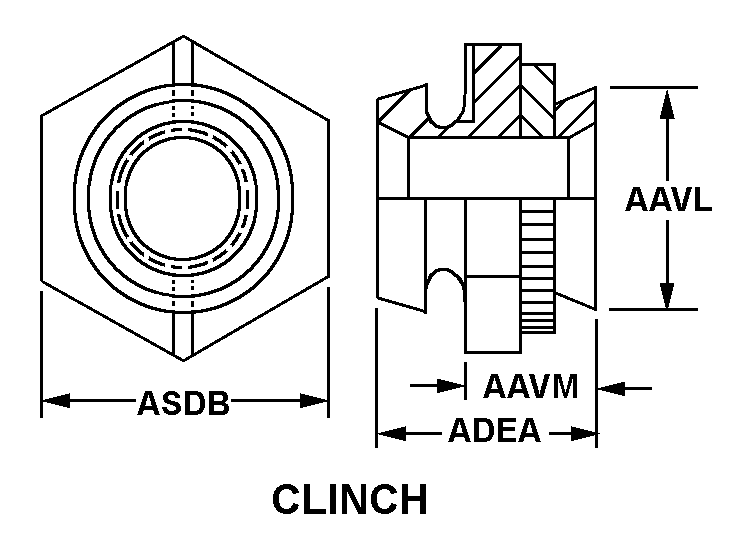

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-053-1366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 515618 | 04660 | AIL SYSTEMS INCSUB OF EATON CORP |
| 990289-4 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 10870500-04 | 27963 | GENERAL DYNAMICS INFORMATION SYSTEMSINC. |
| 45073-0006 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 9335C3005-3 | 87557 | LOCKHEED CORPLOCKHEED ELECTRONICS CO INC |
| 1979457P2 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 247AS-C0402-006 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 263-002-2004 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 698-066 | 26055 | PARKER-HANNIFIN CORPORATIONDBA ELECTRONICS SYSTEMS DIVISION |
| LKS-440-2EF | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| LKS440-2 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| 04MN009-7 | 24587 | RAYTHEON COESD LONG ISLAND DIV |
| 413268-6 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| FD-N0010-018 | 33875 | RAYTHEON E-SYSTEMS INC |
| 45938-005-01 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| P45938-005-01 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5310-00-053-1366
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | 70.0 ROCKWELL C MINIMUM |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.185 INCHES MAXIMUM |
| PILOT LENGTH | 0.054 INCHES MAXIMUM |
| NUT HEIGHT | 0.189 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
