Part Details | WOODRUFF KEY
5315-00-062-4395 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Alternate Parts: 144131, 144131, 8758901, 5315-00-062-4395, 00-062-4395, 5315000624395, 000624395
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-062-4395 | 02380 ( KEY, WOODRUFF ) |
REFERENCE DRAWINGS & PICTURES

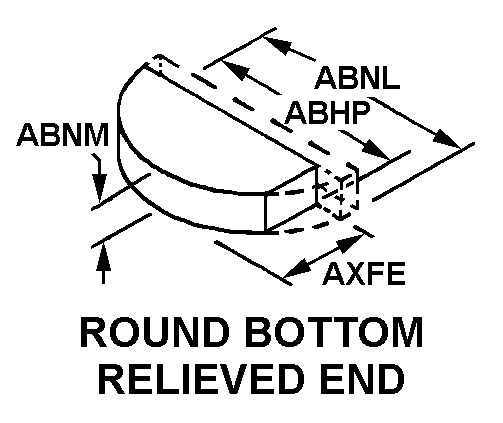

ROUND BOTTOM RELIEVED END
Cross Reference | NSN 5315-00-062-4395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 144131 | 0UA25 | CUMMINS CENTRAL POWER, LLC |
| 144131 | 15434 | CUMMINS INC. |
| 8758901 | K4365 | MANITOWOC CRANE GROUP UK LIMITED |
Technical Data | NSN 5315-00-062-4395
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND BOTTOM RELIEVED END |
| OVERALL LENGTH | 0.480 INCHES NOMINAL |
| CIRCLE DIAMETER | 0.750 INCHES NOMINAL |
| THICKNESS | 0.125 INCHES NOMINAL |
| KEY HEIGHT | 0.195 INCHES NOMINAL |
| STARTING EDGE SHAPE | STRAIGHT |
| FEATURES PROVIDED | CASEHARDENED |
