5315-00-064-0042 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: GK12A1, 5315-00-064-0042, 00-064-0042, 5315000640042, 000640042
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 22, 1967 | 00-064-0042 | 02378 ( KEY, MACHINE ) |

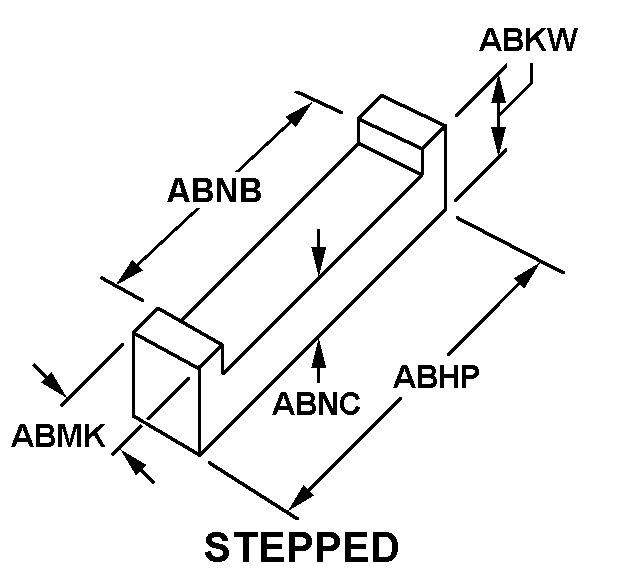

REFERENCE DRAWINGS & PICTURES
STEPPED
Cross Reference | NSN 5315-00-064-0042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GK12A1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5315-00-064-0042
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED |
| OVERALL LENGTH | 0.627 INCHES NOMINAL |
| OVERALL HEIGHT | 0.212 INCHES NOMINAL |
| OVERALL WIDTH | 0.237 INCHES MINIMUM AND 0.247 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 0.406 INCHES NOMINAL |
| FLAT HEIGHT | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| MOUNTING HOLE TYPE AND QUANTITY | 1 PLAIN |
| MOUNTING HOLE DIAMETER | 0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.065 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.237 INCHES MINIMUM AND 0.247 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
