Part Details | RIVET CAP
5320-00-205-7798 A closure designed to fit over the end of a split or tubular rivet shank and into which the shank end is crimped in assembly. It provides greater strength and gives the appearance of a solid rivet at the clinched end. The closure may have a knurled shank and a head with its bottom recessed to fit over a hollow rivet head. It is designed to be pressed or driven through the head of a hollow rivet when a closed assembly is required.
Alternate Parts: 5320-00-205-7798, 00-205-7798, 5320002057798, 002057798
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-205-7798 | 09731 ( CAP, RIVET ) |
REFERENCE DRAWINGS & PICTURES

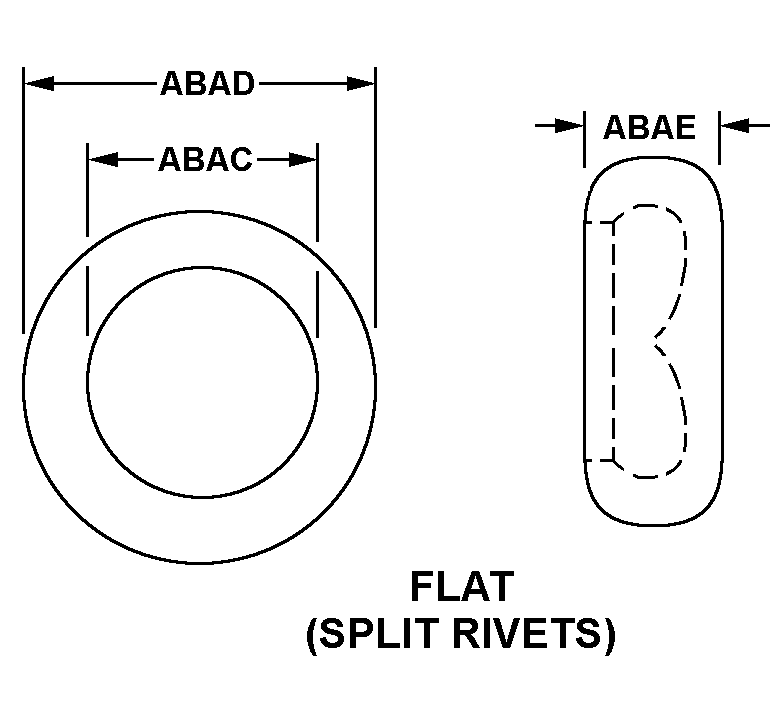

FLAT (SPLIT RIVETS)
Cross Reference | NSN 5320-00-205-7798
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 5320-00-205-7798
| Characteristic | Specifications |
|---|---|
| CAP STYLE | FLAT (SPLIT RIVETS) |
| CAP INSIDE DIAMETER | 0.219 INCHES NOMINAL |
| CAP OUTSIDE DIAMETER | 0.328 INCHES NOMINAL |
| CAP OVERALL HEIGHT | 0.078 INCHES NOMINAL |
