NSN 5325-00-132-3689

Part Details | TRIM SPRING TENSION FASTENER

5325-00-132-3689 A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG.

Alternate Parts: 9021680043, 90-2168-0043, 902168 0043 00 001, 90-2168 0043 00 001, 6390162001, 63-9016-20-01, 63901620 0100148, 63-9016-20 01-00148, 5390162001, 53-9016-2001, 902168 0043 00 001, 90-2168 0043 00 001, 9021680043, 90-2168-0043, W5098245JM, W5098245JM, 5325-00-132-3689, 00-132-3689, 5325001323689, 001323689

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
53DEC 16, 196800-132-368918517 ( FASTENER, SPRING TENSION, TRIM )

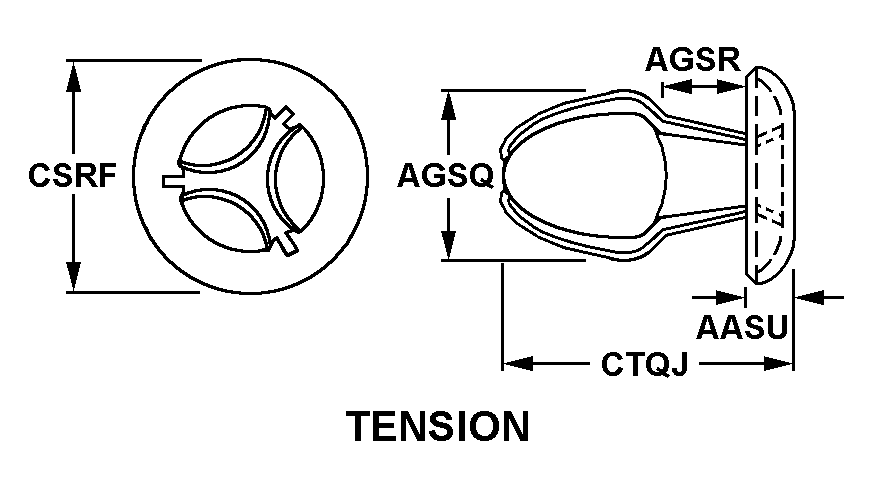

REFERENCE DRAWINGS & PICTURES

TENSION

Cross Reference | NSN 5325-00-132-3689
Part Number Cage Code Manufacturer
90-2168-004391662AVX CORPORATION
90-2168 0043 00 00191662AVX CORPORATION
63-9016-20-0191662AVX CORPORATION
63-9016-20 01-0014891662AVX CORPORATION
53-9016-200191662AVX CORPORATION
90-2168 0043 00 001D2643ELCO EUROPE GMBHDBA ELCO EUROPE ELEKTROKOMPONENTEN
90-2168-004383486ELCO INDUSTRIES INC
W5098245JMS3118OERLIKON-BUEHRLE AGWERKZEUGMASCHINENFABRIK
W5098245JMS3092RHEINMETALL AIR DEFENCE AG
Technical Data | NSN 5325-00-132-3689
Characteristic Specifications
FASTENER STYLE TENSION
HEAD HEIGHT0.020 INCHES NOMINAL
PRONG DIAMETER0.168 INCHES NOMINAL
FASTENER OUTSIDE DIAMETER0.359 INCHES NOMINAL
FASTENER OVERALL LENGTH0.281 INCHES NOMINAL
