Part Details | TURNLOCK FASTENER LOCK SPRING
5325-00-171-4206 A spring-tempered wire item used to secure a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cammed groove of the STUD, TURNLOCK FASTENER and securing it by means of its spring action.
Alternate Parts: 5003741, 500374-1, SD3140, SD3-140, 5325-00-171-4206, 00-171-4206, 5325001714206, 001714206
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 21, 1967 | 00-171-4206 | 18420 ( LOCK SPRING, TURNLOCK FASTENER ) |
REFERENCE DRAWINGS & PICTURES

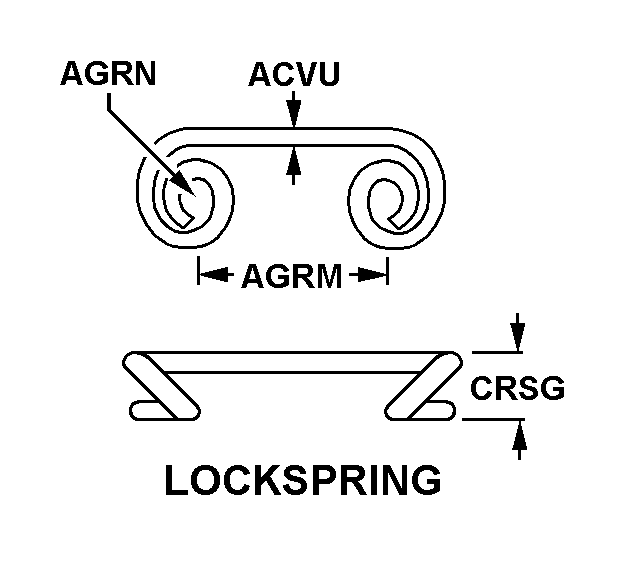

LOCKSPRING
Cross Reference | NSN 5325-00-171-4206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500374-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| SD3-140 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACEFASTENERS DIVISION |
Technical Data | NSN 5325-00-171-4206
| Characteristic | Specifications |
|---|---|
| LOCKSPRING STYLE | LOCKSPRING |
| STOCK DIAMETER | 0.045 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN EYES | 0.500 INCHES NOMINAL |
| EYE DIAMETER | 0.097 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| LOCKSPRING OVERALL HEIGHT | 0.140 INCHES NOMINAL |
