Part Details | SNAPSLIDE FASTENER
5325-00-171-4238 A mechanical device consisting of a latch, latch guide, post, and washer designed to support and hold equipment in a fixed position. It may or may not include STUD, SNAPSLIDE FASTENER.
Alternate Parts: AN31954, AN3195-4, 31954, 3195-4, 1280005002, 128-0005-002, 17AT339, AN319STYPEAN31954, AN319STYPEAN3195-4, MS213324, MS21332-4, 296802, MS213324, MS21332-4, 820808G4, 5325-00-171-4238, 00-171-4238, 5325001714238, 001714238
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-171-4238 | 17527 ( FASTENER, SNAPSLIDE ) |
REFERENCE DRAWINGS & PICTURES
FLAT TURNED-UP END

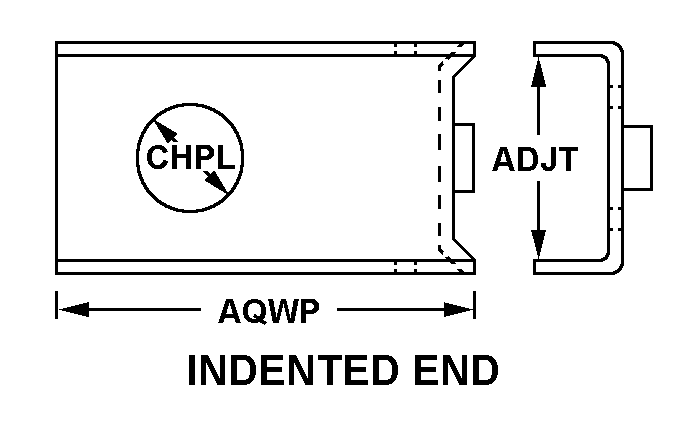

INDENTED END
POST
Cross Reference | NSN 5325-00-171-4238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3195-4 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 3195-4 | 81352 | AIR FORCE-NAVY AERONAUTICALSPECIFICATIONS |
| 128-0005-002 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 17AT339 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICSDIVISION |
| AN319STYPEAN3195-4 | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| MS21332-4 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 296802 | 07342 | NAI TECHNOLOGIES INC |
| MS21332-4 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| 820808G4 | 58474 | SUPERIOR ELECTRIC HOLDING GROUP LLCDBA SUPERIOR ELECTRIC |
Technical Data | NSN 5325-00-171-4238
| Characteristic | Specifications |
|---|---|
| LATCH STYLE | FLAT TURNED-UP END |
| THICKNESS | 0.050 INCHES NOMINAL |
| LATCH OVERALL LENGTH | 1.125 INCHES NOMINAL |
| NOTCH DIAMETER | 0.187 INCHES NOMINAL |
| LATCH OVERALL WIDTH | 0.437 INCHES NOMINAL |
| LATCH GUIDE STYLE | INDENTED END |
| INSIDE WIDTH | 0.468 INCHES NOMINAL |
| GUIDE LENGTH | 0.247 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| GUIDE HOLE DIAMETER | 0.129 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| SNAPSLIDE POST STYLE | POST |
| HOLE DEPTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.086 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| HEAD OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 0.184 INCHES NOMINAL |
| POST SHOULDER LENGTH | 0.075 INCHES NOMINAL |
| POST SHANK LENGTH | 0.113 INCHES NOMINAL |
