Part Details | SNAP FASTENER CAP
5325-00-171-4621 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.
Alternate Parts: AN22738, AN227-38, 7405981, 740598-1, 189720, 1897-20, 301, 5325-00-171-4621, 00-171-4621, 5325001714621, 001714621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-171-4621 | 16556 ( CAP, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

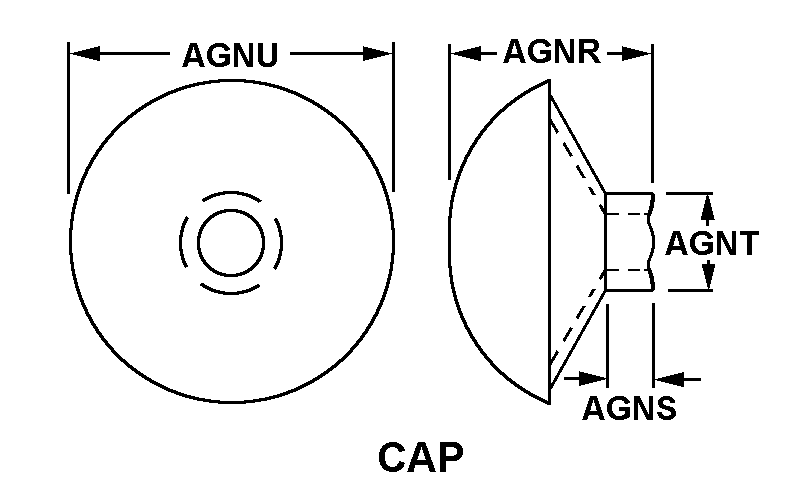

CAP
Cross Reference | NSN 5325-00-171-4621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-38 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 740598-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 1897-20 | 53705 | SCOVILL INC |
| 301 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-171-4621
| Characteristic | Specifications |
|---|---|
| CAP STYLE | CAP |
| CAP OVERALL LENGTH | 0.312 INCHES NOMINAL |
| CAP SHANK LENGTH | 0.062 INCHES NOMINAL |
| CAP SHANK DIAMETER | 0.156 INCHES NOMINAL |
| CAP HEAD DIAMETER | 0.531 INCHES NOMINAL |
