Part Details | SNAPSLIDE FASTENER
5325-00-171-6345 A mechanical device consisting of a latch, latch guide, post, and washer designed to support and hold equipment in a fixed position. It may or may not include STUD, SNAPSLIDE FASTENER.
Alternate Parts: 30A1438ISSUEA, 5325-00-171-6345, 00-171-6345, 5325001716345, 001716345
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-171-6345 | 17527 ( FASTENER, SNAPSLIDE ) |
REFERENCE DRAWINGS & PICTURES
FLAT TURNED-UP END

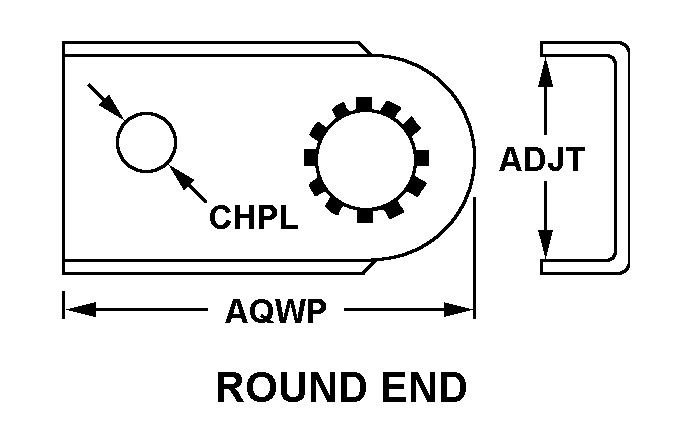

ROUND END
POST
STUD
Cross Reference | NSN 5325-00-171-6345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30A1438ISSUEA | 93663 | I T I ELECTRONICS, INC. |
Technical Data | NSN 5325-00-171-6345
| Characteristic | Specifications |
|---|---|
| LATCH STYLE | FLAT TURNED-UP END |
| THICKNESS | 0.032 INCHES NOMINAL |
| LATCH OVERALL LENGTH | 0.600 INCHES NOMINAL |
| NOTCH DIAMETER | 0.130 INCHES NOMINAL |
| LATCH OVERALL WIDTH | 0.240 INCHES NOMINAL |
| LATCH GUIDE STYLE | ROUND END |
| INSIDE WIDTH | 0.266 INCHES NOMINAL |
| GUIDE LENGTH | 0.609 INCHES NOMINAL |
| GUIDE HOLE DIAMETER | 0.082 INCHES NOMINAL |
| SNAPSLIDE POST STYLE | POST |
| HOLE DEPTH | 0.094 INCHES NOMINAL |
| OVERALL LENGTH | 0.159 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.078 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 0.219 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
| POST SHOULDER LENGTH | 0.045 INCHES NOMINAL |
| POST SHANK LENGTH | 0.095 INCHES NOMINAL |
| SNAPSLIDE STUD STYLE | STUD |
| SHANK LENGTH | 0.093 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.187 INCHES NOMINAL |
| SHOULDER LENGTH | 0.078 INCHES NOMINAL |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
| NECK DIAMETER | 0.125 INCHES NOMINAL |
| LARGEST DIAMETER | 0.187 INCHES NOMINAL |
| NECK LENGTH | 0.045 INCHES NOMINAL |
| STUD LENGTH | 0.346 INCHES NOMINAL |
| SPECIAL FEATURES | DRILLED STUD HEAD |
