Part Details | SNAP FASTENER STUD
5325-00-174-2881 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: 5325-00-174-2881, 00-174-2881, 5325001742881, 001742881
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2881 | 16550 ( STUD, SNAP FASTENER ) |

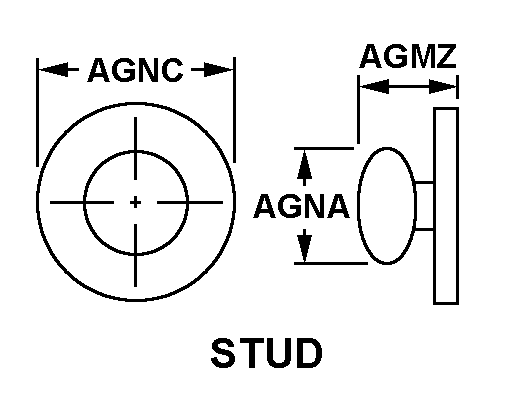

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-174-2881
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 5325-00-174-2881
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| STUD OVERALL LENGTH | 0.312 INCHES NOMINAL |
| STUD BASE DIAMETER | 0.438 INCHES NOMINAL |
| STUD RETENTION METHOD | CLINCH |
