Part Details | SNAP FASTENER CLINCH PLATE
5325-00-174-2888 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Alternate Parts: AN22749, AN227-49, AA556211N, A-A-55621-1N, MS279821N, MS27982-1N, 90922, BS90925, 5325-00-174-2888, 00-174-2888, 5325001742888, 001742888
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2888 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

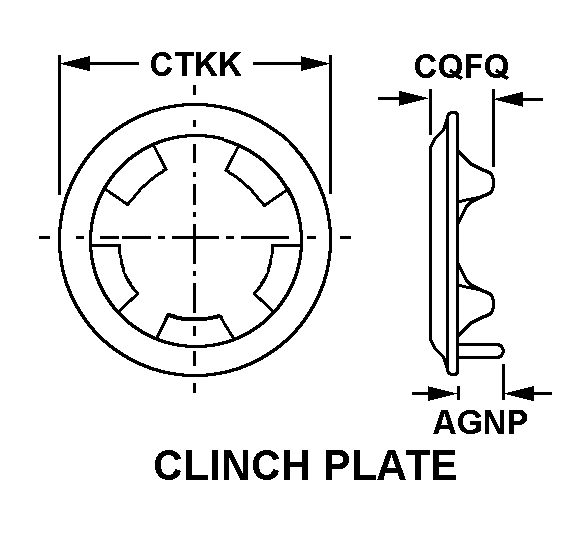

CLINCH PLATE
Cross Reference | NSN 5325-00-174-2888
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-49 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| A-A-55621-1N | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| MS27982-1N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 90922 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| BS90925 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-174-2888
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER CLINCH PLATE STYLE | CLINCH PLATE |
| PLATE PRONG LENGTH | 0.109 INCHES NOMINAL |
| PLATE OVERALL HEIGHT | 0.143 INCHES NOMINAL |
| CLINCH PLATE DIAMETER | 0.425 INCHES MINIMUM AND 0.435 INCHES MAXIMUM |
