Part Details | SNAP FASTENER SOCKET
5325-00-174-2889 A component of a FASTENER, SNAP; which is designed as a receptacle for a STUD, SNAP FASTENER. It may be furnished with CAP, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER.
Alternate Parts: AN22712, AN227-12, MS279813N, MS27981-3N, 136, 12206, 12205, XX12206K1105, 5325-00-174-2889, 00-174-2889, 5325001742889, 001742889
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2889 | 16559 ( SOCKET, SNAP FASTENER ) |

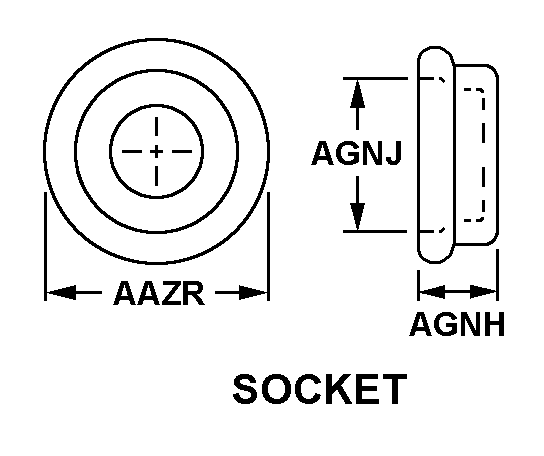

REFERENCE DRAWINGS & PICTURES
SOCKET
Cross Reference | NSN 5325-00-174-2889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-12 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| MS27981-3N | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 136 | 53705 | SCOVILL INC |
| 12206 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| 12205 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| XX12206K1105 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-174-2889
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER SOCKET STYLE | SOCKET |
| MAJOR DIAMETER | 0.422 INCHES NOMINAL |
| SOCKET OVERALL HEIGHT | 0.156 INCHES NOMINAL |
| OPENING DIAMETER | 0.312 INCHES NOMINAL |
