Part Details | SNAP FASTENER STUD
5325-00-174-2923 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Alternate Parts: AN2278, AN227-8, AN2278, AN227-8, MS27987N, MS2798-7N, AN2278, AN227-8, 8168501, 5325-00-174-2923, 00-174-2923, 5325001742923, 001742923
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2923 | 16550 ( STUD, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

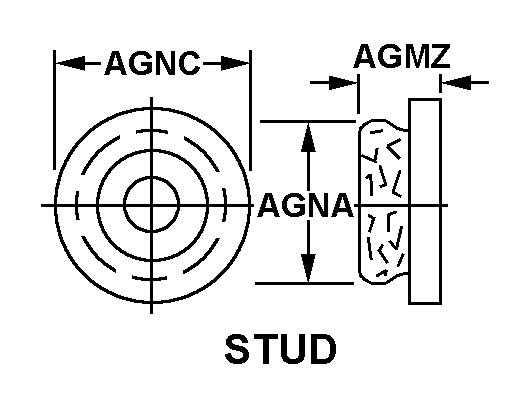

STUD
Cross Reference | NSN 5325-00-174-2923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN227-8 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| AN227-8 | 81352 | AIR FORCE-NAVY AERONAUTICALSPECIFICATIONS |
| MS2798-7N | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| AN227-8 | 01359 | TRIUMPH THERMAL SYSTEMS - MARYLAND,INC. |
| 8168501 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5325-00-174-2923
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER STUD STYLE | STUD |
| STUD OVERALL LENGTH | 0.171 INCHES MINIMUM AND 0.181 INCHES MAXIMUM |
| STUD BASE DIAMETER | 0.555 INCHES NOMINAL |
