Part Details | SNAP FASTENER CLINCH PLATE
5325-00-174-2934 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Alternate Parts: 190762, 190762, 5325-00-174-2934, 00-174-2934, 5325001742934, 001742934
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-2934 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |
REFERENCE DRAWINGS & PICTURES

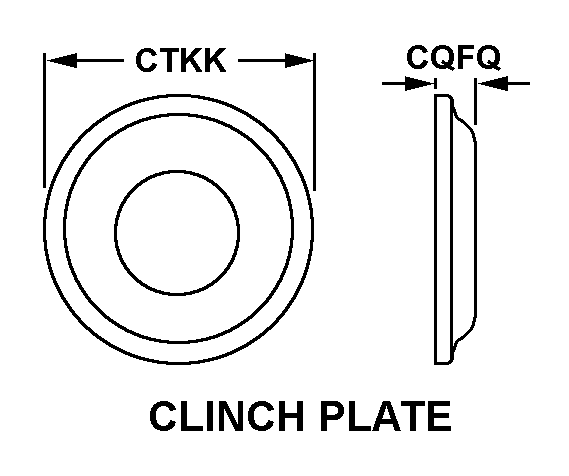

CLINCH PLATE
Cross Reference | NSN 5325-00-174-2934
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 190762 | 24617 | GENERAL MOTORS CORP |
| 190762 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 5325-00-174-2934
| Characteristic | Specifications |
|---|---|
| SNAP FASTENER CLINCH PLATE STYLE | CLINCH PLATE |
| CLINCH PLATE DIAMETER | 0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
