Part Details | TURNBUTTON FASTENER CLINCH PLATE
5325-00-174-9042 A metal device designed to permanently fasten a SOCKET, TURNBUTTON FASTENER or STUD, TURNBUTTON FASTENER to a material by means of prongs, riveting, or spring binding action.
Alternate Parts: 63566, 5325-00-174-9042, 00-174-9042, 5325001749042, 001749042
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-174-9042 | 18138 ( CLINCH PLATE, TURNBUTTON FASTENER ) |
REFERENCE DRAWINGS & PICTURES

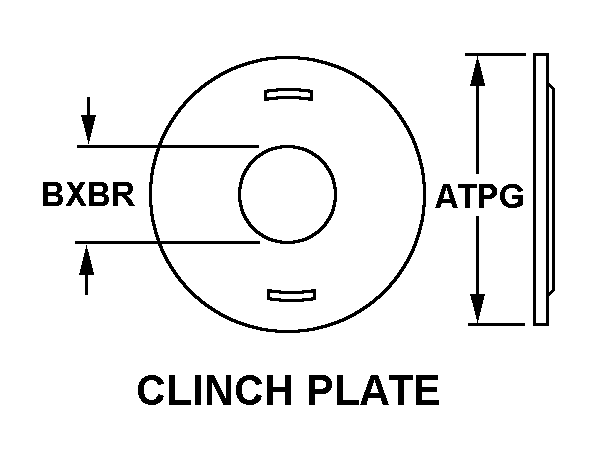

CLINCH PLATE
Cross Reference | NSN 5325-00-174-9042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63566 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Technical Data | NSN 5325-00-174-9042
| Characteristic | Specifications |
|---|---|
| TURNBUTTON CLINCH PLATE STYLE | CLINCH PLATE |
| PLATE DIAMETER | 0.875 INCHES NOMINAL |
| HOLE INSIDE DIAMETER | 0.305 INCHES NOMINAL |
