Part Details | GASKET
5330-00-254-4517 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 59722, 5330-00-254-4517, 00-254-4517, 5330002544517, 002544517
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 18, 1969 | 00-254-4517 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

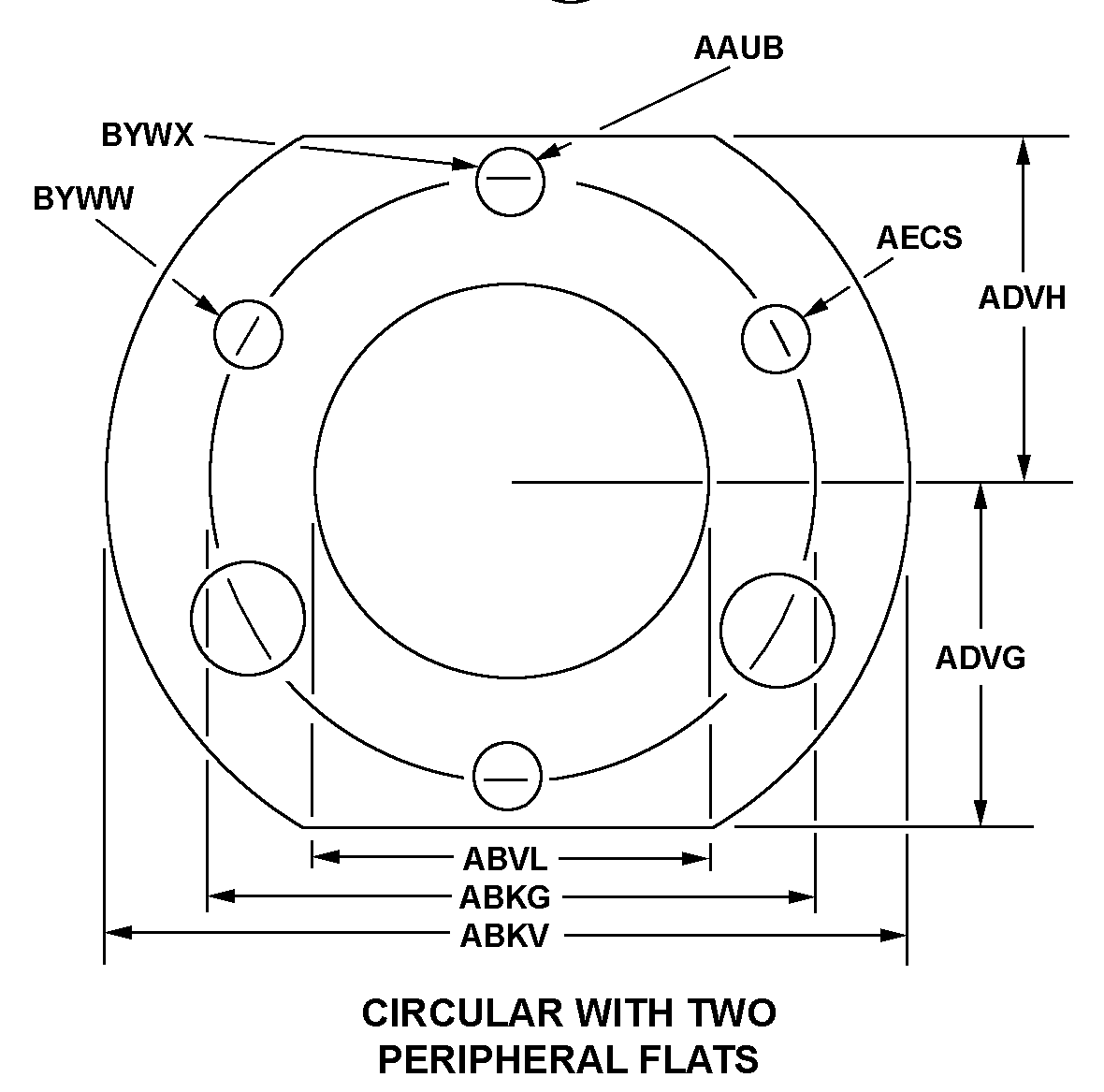

CIRCULAR WITH TWO PERIPHERAL FLATS
Cross Reference | NSN 5330-00-254-4517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59722 | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
Technical Data | NSN 5330-00-254-4517
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| STYLE DESIGNATOR | CIRCULAR WITH TWO PERIPHERAL FLATS |
| HOLE DIAMETER | 0.203 INCHES |
| BOLT CIRCLE DIAMETER | 1.213 INCHES MINIMUM AND 1.223 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.656 INCHES NOMINAL |
| APERTURE DIAMETER | 0.781 INCHES NOMINAL |
| GASKET CENTER TO FLAT DISTANCE | 0.688 INCHES NOMINAL |
| GASKET CENTER TO SECOND FLAT DISTANCE | 0.688 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| SPECIAL FEATURES | TWO POSITIONING HOLES |
