Part Details | GASKET
5330-00-330-3883 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 841474, 5330-00-330-3883, 00-330-3883, 5330003303883, 003303883
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-330-3883 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

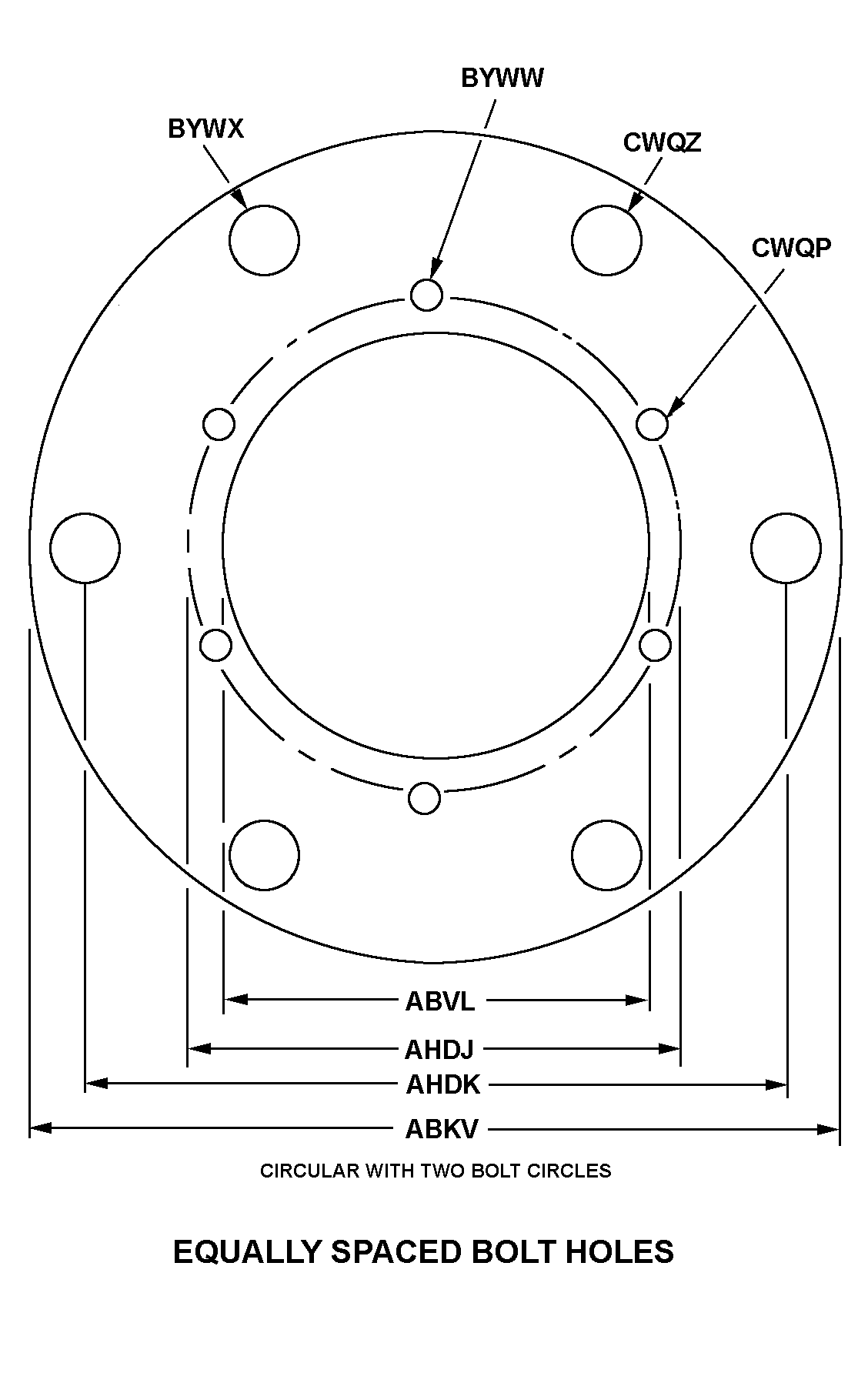

EQUALLY SPACED BOLT HOLES
Cross Reference | NSN 5330-00-330-3883
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 841474 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5330-00-330-3883
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| STYLE DESIGNATOR | EQUALLY SPACED BOLT HOLES |
| OUTSIDE DIAMETER | 2.750 INCHES NOMINAL |
| APERTURE DIAMETER | 1.812 INCHES NOMINAL |
| SECOND BOLT CIRCLE DIAMETER | 2.375 INCHES NOMINAL |
| SMALLEST BOLT HOLE DIAMETER | 0.125 INCHES NOMINAL |
| LARGEST BOLT HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |
