Part Details | GASKET
5330-00-346-9357 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 612A255P1, 612A255P1, 5330-00-346-9357, 00-346-9357, 5330003469357, 003469357
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-346-9357 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES

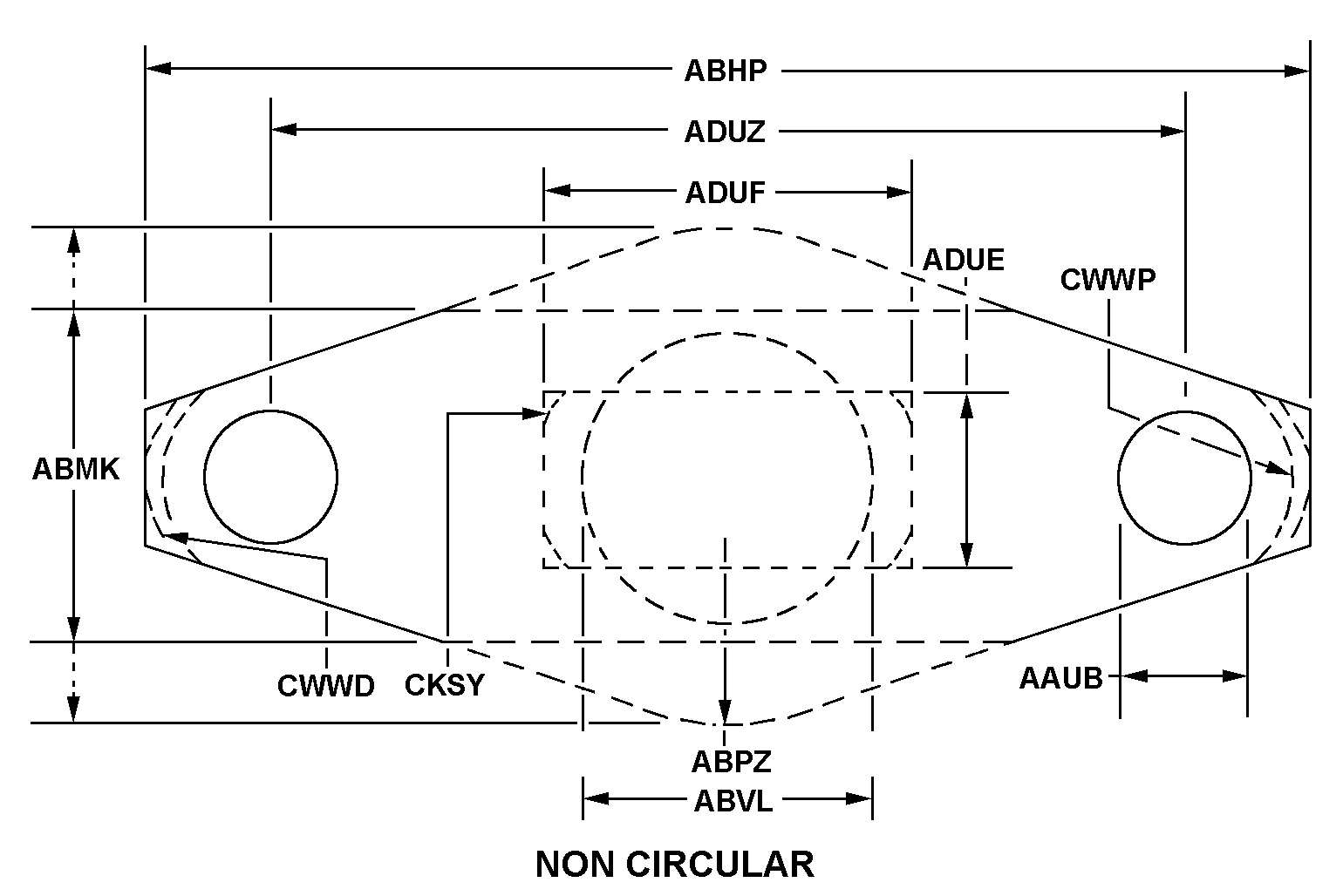

NON-CIRCULAR
Cross Reference | NSN 5330-00-346-9357
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 612A255P1 | 24446 | GENERAL ELECTRIC COMPANY |
| 612A255P1 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 5330-00-346-9357
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL THICKNESS | 0.016 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.281 INCHES |
| APERTURE DIAMETER | 0.006 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.990 INCHES |
| SIDE CORNER RADIUS | 0.220 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| END ITEM IDENTIFICATION | ACFT ENGINE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET-LUBE MANIFOLD |
