Part Details | GASKET
5330-00-349-8390 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: CE93606, 5330-00-349-8390, 00-349-8390, 5330003498390, 003498390
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 29, 1971 | 00-349-8390 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

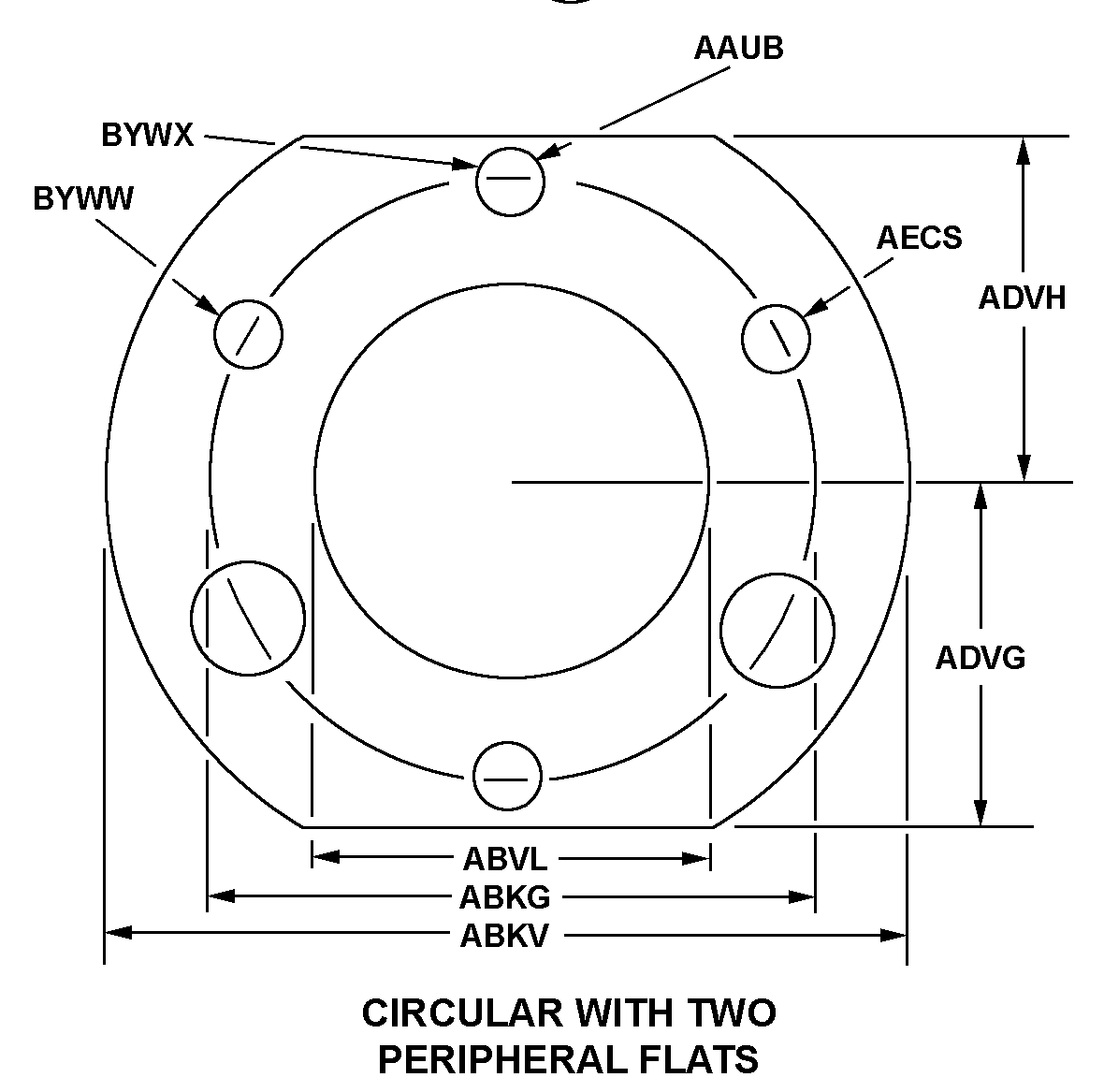

CIRCULAR WITH TWO PERIPHERAL FLATS
Cross Reference | NSN 5330-00-349-8390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CE93606 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5330-00-349-8390
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | CIRCULAR WITH TWO PERIPHERAL FLATS |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| APERTURE DIAMETER | 0.172 INCHES NOMINAL |
| GASKET CENTER TO FLAT DISTANCE | 0.219 INCHES NOMINAL |
| GASKET CENTER TO SECOND FLAT DISTANCE | 0.219 INCHES NOMINAL |
