Part Details | GASKET
5330-00-406-0560 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 2528485, 2528485, 5330-00-406-0560, 00-406-0560, 5330004060560, 004060560
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 14, 1971 | 00-406-0560 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

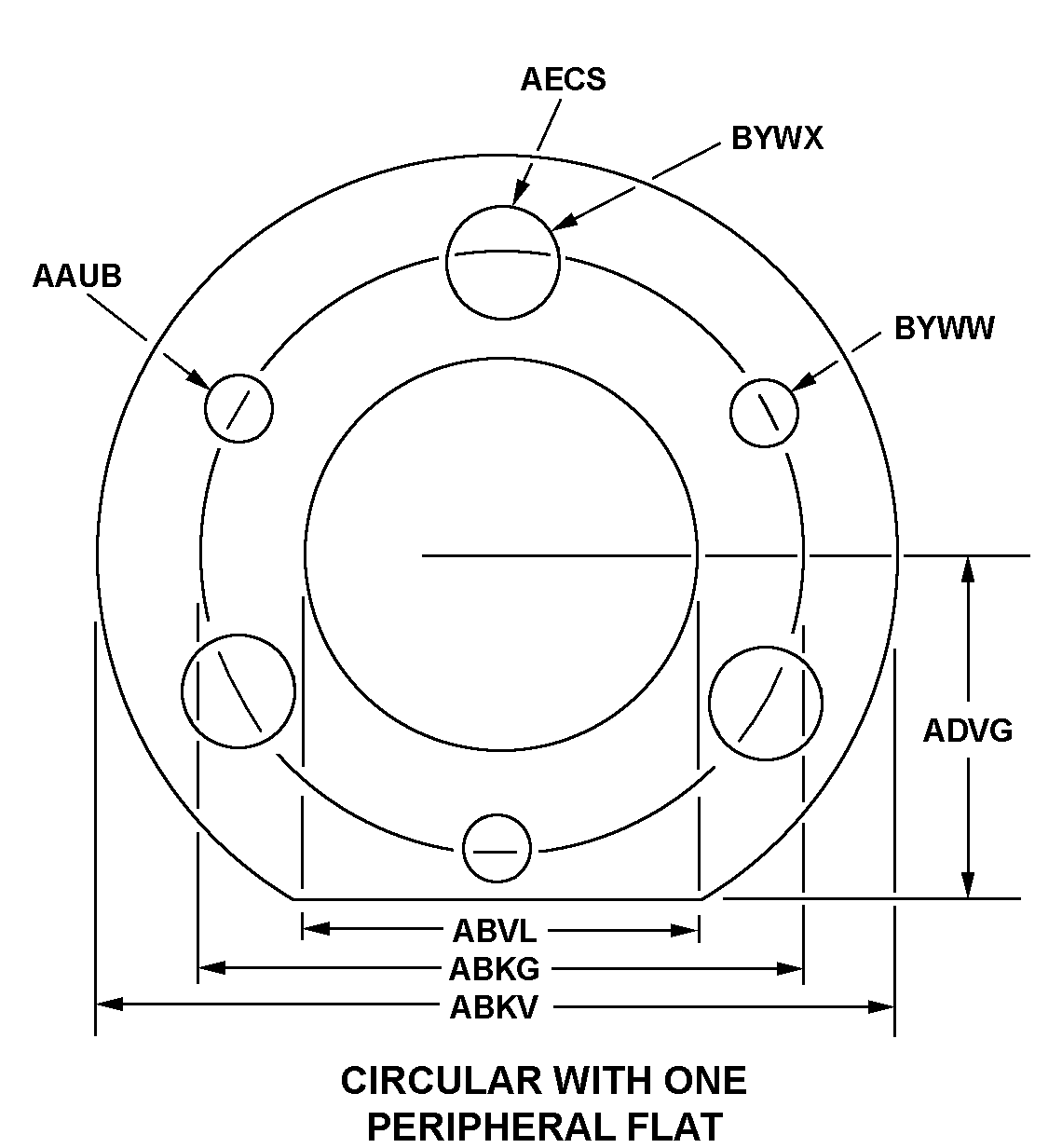

CIRCULAR WITH ONE PERIPHERAL FLAT
Cross Reference | NSN 5330-00-406-0560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2528485 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2528485 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5330-00-406-0560
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 8 METAL |
| CROSS-SECTIONAL THICKNESS | 0.023 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| STYLE DESIGNATOR | CIRCULAR WITH ONE PERIPHERAL FLAT |
| HOLE DIAMETER | 0.219 INCHES |
| BOLT CIRCLE DIAMETER | 3.562 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.062 INCHES NOMINAL |
| GASKET CENTER TO FLAT DISTANCE | 1.218 INCHES NOMINAL |
