Part Details | GASKET
5330-00-524-0010 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Alternate Parts: 6865223, 693206, 6865223, 215553005, 215-55300-5, 5330-00-524-0010, 00-524-0010, 5330005240010, 005240010
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 13, 1969 | 00-524-0010 | 04522 ( GASKET ) |
REFERENCE DRAWINGS & PICTURES
METAL

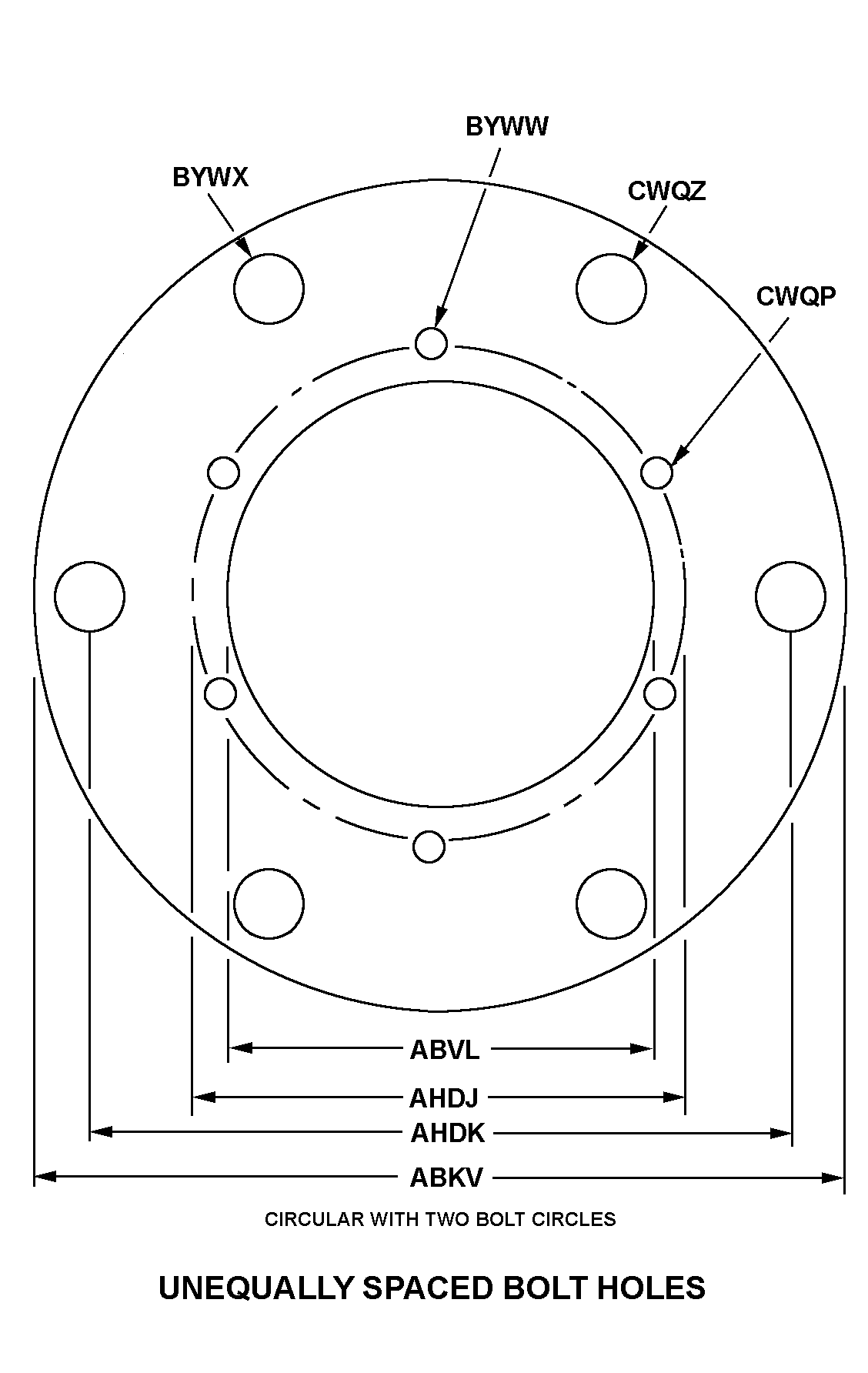

UNEQUALLY SPACED BOLT HOLES
Cross Reference | NSN 5330-00-524-0010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6865223 | 73342 | ALLISON TRANSMISSION, INC. |
| 693206 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 6865223 | 63005 | ROLLS-ROYCE CORPORATION |
| 215-55300-5 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 5330-00-524-0010
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 3 METAL |
| CROSS-SECTIONAL THICKNESS | 0.010 INCHES NOMINAL |
| STYLE DESIGNATOR | UNEQUALLY SPACED BOLT HOLES |
| OUTSIDE DIAMETER | 11.063 INCHES MINIMUM AND 11.093 INCHES MAXIMUM |
| APERTURE DIAMETER | 9.500 INCHES MINIMUM AND 9.515 INCHES MAXIMUM |
| FIRST BOLT CIRCLE DIAMETER | 10.000 INCHES NOMINAL |
| SECOND BOLT CIRCLE DIAMETER | 10.250 INCHES NOMINAL |
| SMALLEST BOLT HOLE DIAMETER | 0.406 INCHES NOMINAL |
| LARGEST BOLT HOLE DIAMETER | 0.609 INCHES NOMINAL |
| SMALLEST BOLT HOLE QUANTITY | 12 |
| LARGEST BOLT HOLE QUANTITY | 12 |
