Part Details | PREFORMED MECHANICAL FELT
5330-00-678-3144 An item manufactured to predetermined dimensions. It is either a precut strip or an item of various peripheral shapes and may contain bolt hole(s). It is used as a seal, wiper, mounting pad or for similar purposes. Excludes GASKET and PACKING PREFORMED.
Alternate Parts: 2590006783144, 10863887, 5330-00-678-3144, 00-678-3144, 5330006783144, 006783144
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-678-3144 | 18443 ( FELT, MECHANICAL, PREFORMED ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

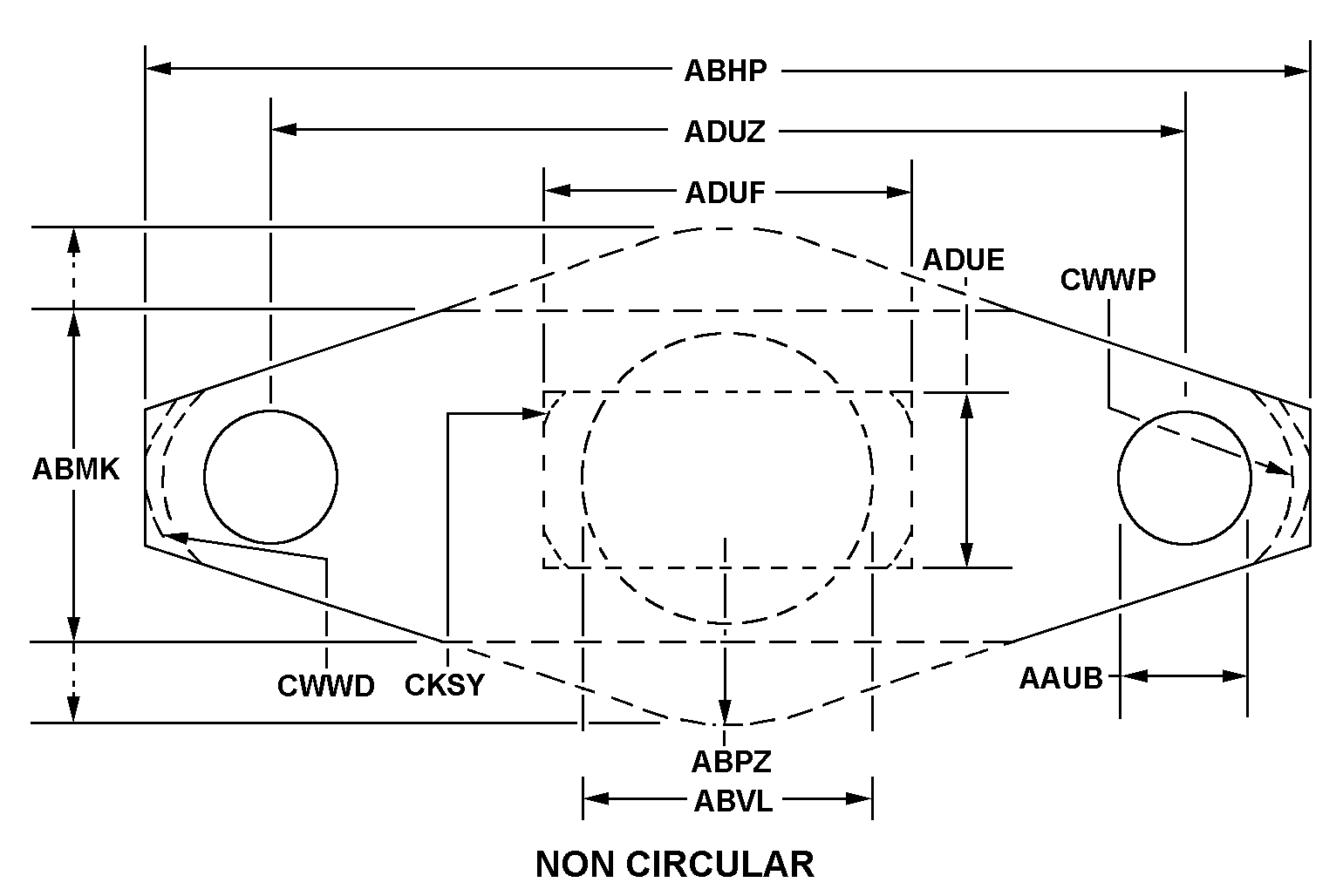

NON-CIRCULAR
Cross Reference | NSN 5330-00-678-3144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2590006783144 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 10863887 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-678-3144
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 1.720 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.750 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| OVERALL LENGTH | 5.690 INCHES NOMINAL |
| OVERALL WIDTH | 1.720 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 3.500 INCHES NOMINAL |
