Part Details | WIPER RING
5330-00-869-8828 A circular, single or multipiece, rigid, metallic or nonmetallic item having a centrally located hole with a sharp edge on the inside periphery. It is supplied in various cross-sectional shapes and is designed to be installed in a cylinder, shock strut, or similar device to remove excess oil, dirt, ice, and/or foreign material from a piston, ram, or sliding rod. Excludes PACKING, PREFORMED; RING, PISTON; and SEAL RING, METAL.
Alternate Parts: 10954480, 5330-00-869-8828, 00-869-8828, 5330008698828, 008698828
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-869-8828 | 20256 ( RING, WIPER ) |
REFERENCE DRAWINGS & PICTURES
PLAIN RECTANGULAR, STRAIGHT FACE

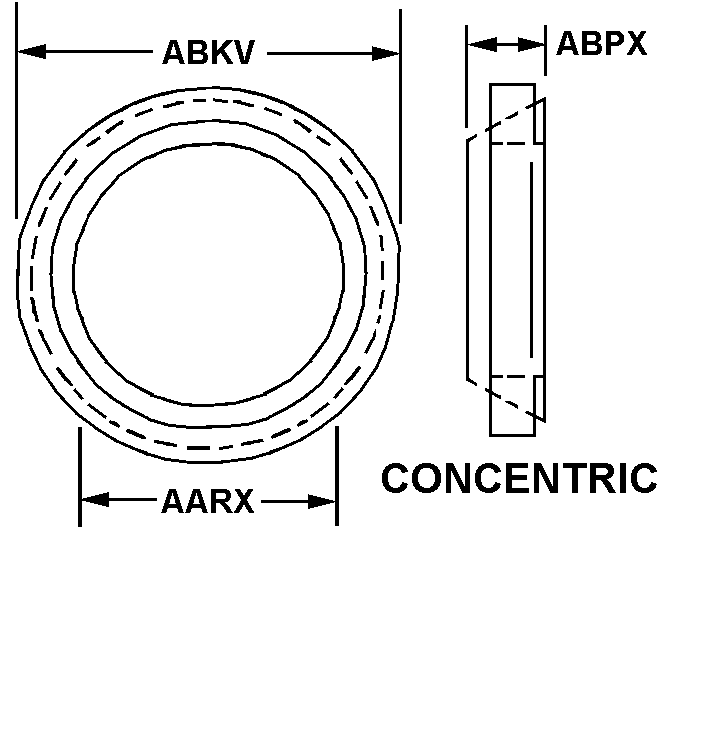

CONCENTRIC
Cross Reference | NSN 5330-00-869-8828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10954480 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-869-8828
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | PLAIN RECTANGULAR, STRAIGHT FACE |
| RING STYLE | CONCENTRIC |
| INSIDE DIAMETER | 0.748 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.562 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.312 INCHES NOMINAL |
