Part Details | SEAL RETAINER
5330-00-877-3524 An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING.
Alternate Parts: 6816047, 6816047, 6816047, 5330-00-877-3524, 00-877-3524, 5330008773524, 008773524
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-877-3524 | 50336 ( RETAINER, SEAL ) |
REFERENCE DRAWINGS & PICTURES

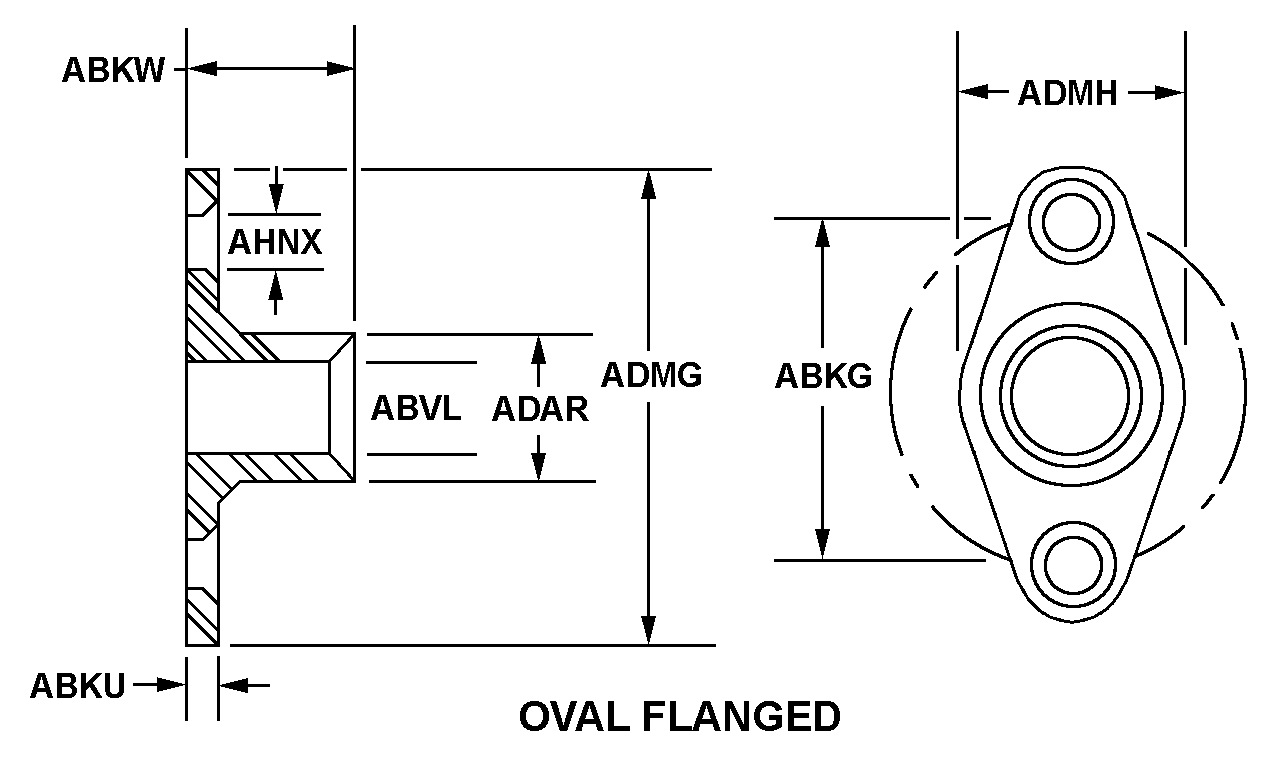

OVAL FLANGED
Cross Reference | NSN 5330-00-877-3524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6816047 | 73342 | ALLISON TRANSMISSION, INC. |
| 6816047 | 24617 | GENERAL MOTORS CORP |
| 6816047 | 63005 | ROLLS-ROYCE CORPORATION |
Technical Data | NSN 5330-00-877-3524
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OVAL FLANGED |
| FLANGE THICKNESS | 0.014 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.038 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| APERTURE DIAMETER | 0.875 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.065 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 1.240 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.279 INCHES MINIMUM AND 0.288 INCHES MAXIMUM |
| SPECIAL FEATURES | GASKET, SPARK IGNITER MOUNTING |
