Part Details | PACKING WITH RETAINER
5330-00-907-7198 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, and the like, between fixed surfaces and a cylindrical item passing through it. Excludes SEAL,PLAIN,ENCASED.
Alternate Parts: 8427059, 5330-00-907-7198, 00-907-7198, 5330009077198, 009077198
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 22, 1966 | 00-907-7198 | 05680 ( PACKING WITH RETAINER ) |
REFERENCE DRAWINGS & PICTURES

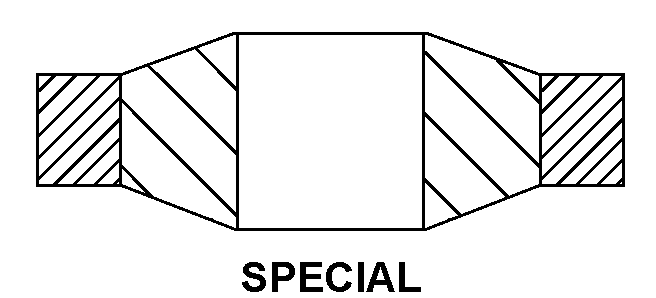

SPECIAL
Cross Reference | NSN 5330-00-907-7198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8427059 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5330-00-907-7198
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | TWO-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | SPECIAL |
| OUTSIDE DIAMETER | 5.747 INCHES NOMINAL |
| PACKING INSIDE DIAMETER | 4.422 INCHES NOMINAL |
| RETAINER THICKNESS | 0.709 INCHES NOMINAL |
| SPECIAL FEATURES | DOWEL-5154569 IN PERIPHERY |
| END ITEM IDENTIFICATION | M158 GUN MOUNT |
