Part Details | NONMETALLIC ANGLE SEAL
5330-00-941-1387 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Alternate Parts: 3F41864101, 3F41864-101, 5330-00-941-1387, 00-941-1387, 5330009411387, 009411387
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 27, 1965 | 00-941-1387 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES
L SHAPE
SQUARE END

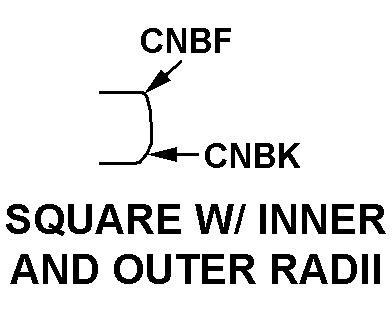

SQUARE W/ INNER AND OUTER RADII
CIRCULAR
Cross Reference | NSN 5330-00-941-1387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3F41864-101 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5330-00-941-1387
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 1.380 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 1.380 INCHES NOMINAL |
| STYLE DESIGNATOR | 5 CIRCULAR |
| OVERALL LENGTH | 75.080 INCHES NOMINAL |
| LEFT TIP STYLE | SQUARE END |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |
| RIGHT TIP STYLE | SQUARE W/ INNER AND OUTER RADII |
| ATTACHMENT METHOD | ROUND HOLE |
| ATTACHMENT FEATURE QUANTITY | 33 |
| ATTACHMENT HOLE DIAMETER | 0.561 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
