Part Details | NONMETALLIC STRIP SEAL
5330-00-945-8713 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Alternate Parts: 11594127, 5330-00-945-8713, 00-945-8713, 5330009458713, 009458713
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 16, 1966 | 00-945-8713 | 36874 ( SEAL, NONMETALLIC STRIP ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR

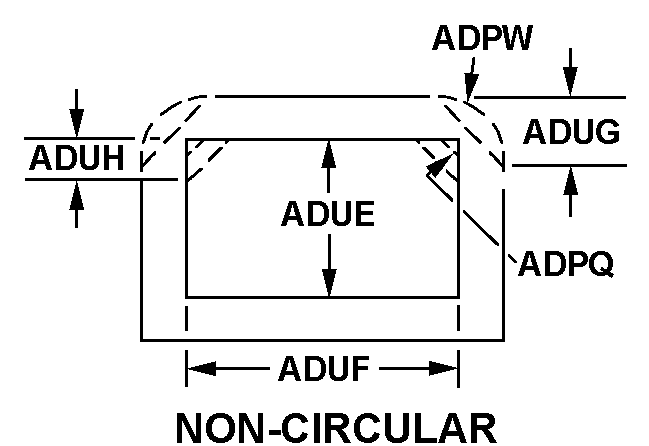

NON-CIRCULAR
Cross Reference | NSN 5330-00-945-8713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11594127 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-00-945-8713
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | 0 CIRCULAR |
| CROSS-SECTIONAL HEIGHT | 0.500 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.531 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| APERTURE WIDTH | 11.375 INCHES NOMINAL |
| APERTURE LENGTH | 9.625 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 2350-00-873-5408 |
