Part Details | NONMETALLIC ANGLE SEAL
5330-01-032-5115 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Alternate Parts: 11675391, 5330-01-032-5115, 01-032-5115, 5330010325115, 010325115
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 15, 1976 | 01-032-5115 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES
L SHAPE
RIGHT TAPER

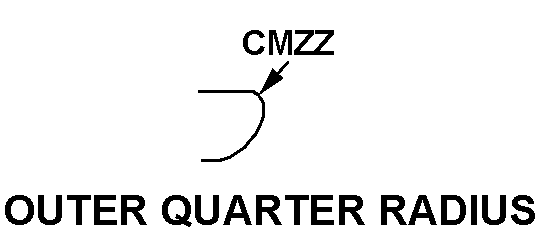

OUTER QUARTER RADIUS
CIRCULAR
Cross Reference | NSN 5330-01-032-5115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11675391 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5330-01-032-5115
| Characteristic | Specifications |
|---|---|
| COLOR | NATURAL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.690 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 1.500 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.250 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.250 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.190 INCHES NOMINAL |
| OUTER RADIUS WHERE FLANGES JOIN | 0.190 INCHES NOMINAL |
| STYLE DESIGNATOR | CIRCULAR |
| APERTURE DIAMETER | 12.120 INCHES NOMINAL |
| LEFT TIP STYLE | RIGHT TAPER |
| FIRST TIP TAPER LENGTH | 0.750 INCHES NOMINAL |
| FIRST TIP THICKNESS | 0.120 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |
| RIGHT TIP STYLE | OUTER QUARTER RADIUS |
| SECOND TIP RADIUS | 0.190 INCHES NOMINAL |
| SPECIAL FEATURES | RELIEVED 3 PLACES |
| END ITEM IDENTIFICATION | M110 HOWITZER FAMILY |
