Part Details | NONMETALLIC CHANNEL SEAL
5330-01-080-0044 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Alternate Parts: 1420250001, 142025-0001, 9311415, 9311415, 5330-01-080-0044, 01-080-0044, 5330010800044, 010800044
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 18, 1979 | 01-080-0044 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES

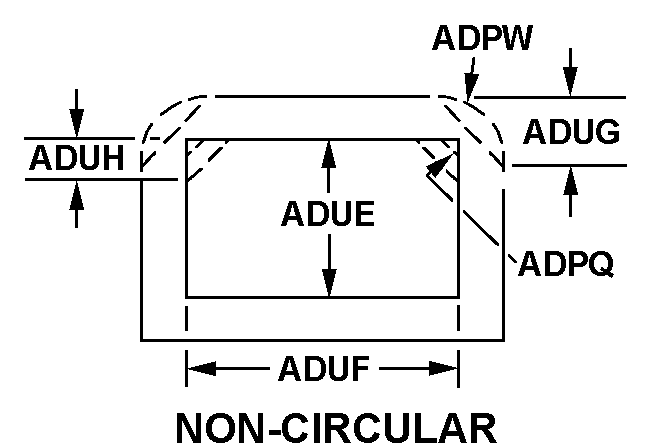

NON-CIRCULAR
Cross Reference | NSN 5330-01-080-0044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 142025-0001 | 19397 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 9311415 | 19203 | PICATINNY ARSENAL |
| 9311415 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5330-01-080-0044
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |
| STYLE DESIGNATOR | NON-CIRCULAR |
| INSIDE CORNER RADIUS | 0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| APERTURE WIDTH | 2.746 INCHES NOMINAL |
| APERTURE LENGTH | 6.806 INCHES NOMINAL |
| OUTSIDE CORNER BEVEL LENGTH | 0.370 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| INSIDE CORNER BEVEL LENGTH | 0.380 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
