Part Details | RETAINING STRAP
5340-00-045-6538 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Alternate Parts: 8769075, 1015000456538, 5340-00-045-6538, 00-045-6538, 5340000456538, 000456538
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-045-6538 | 05072 ( STRAP, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

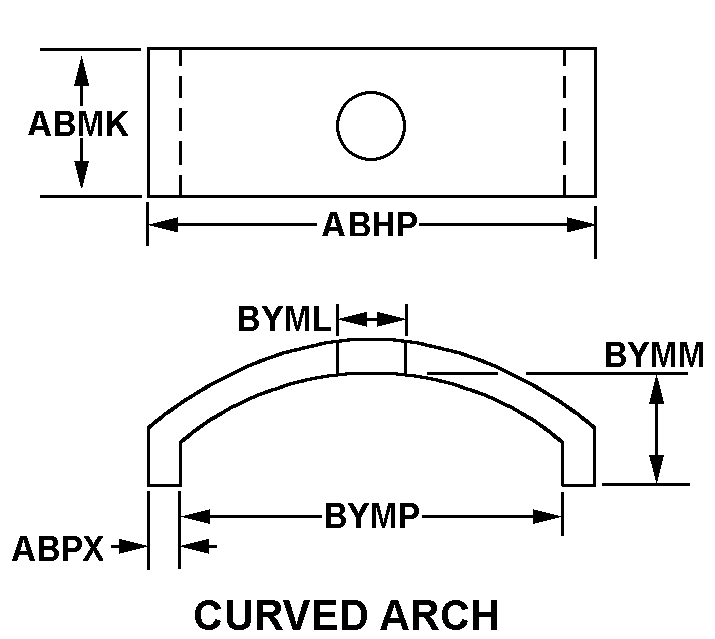

CURVED ARCH
Cross Reference | NSN 5340-00-045-6538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8769075 | 19206 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 1015000456538 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
Technical Data | NSN 5340-00-045-6538
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | CURVED ARCH |
| OVERALL LENGTH | 1.730 INCHES NOMINAL |
| OVERALL WIDTH | 0.410 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.645 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.205 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 0.140 INCHES NOMINAL |
| INSIDE DIAMETER/ARCH LENGTH | 0.440 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
