Part Details | HELICAL COMPRESSION SPRING RETAINER
5340-00-050-3643 A cylindrical item specifically designed to fit over the end of, and completely encase the spring. The open end is usually flanged, the opposite end may be closed or have an orifice to accommodate a guide, plunger, or the like. It is used to position the spring and restrain lateral motion. It may provide a seat for the spring. Excludes HOLDER, SPRING.
Alternate Parts: 12L93697, 12L9369-7, 5340-00-050-3643, 00-050-3643, 5340000503643, 000503643
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 29, 1967 | 00-050-3643 | 24327 ( RETAINER, HELICAL COMPRESSION SPRING ) |
REFERENCE DRAWINGS & PICTURES

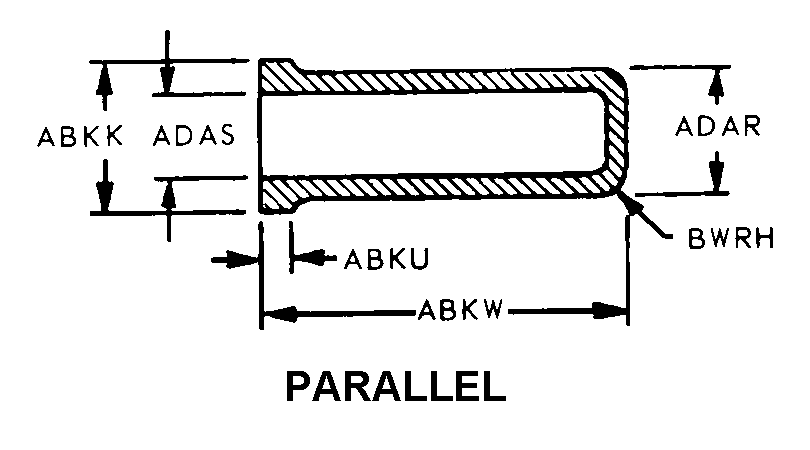

PARALLEL
Cross Reference | NSN 5340-00-050-3643
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12L9369-7 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5340-00-050-3643
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | PARALLEL |
| SURFACE TREATMENT | PASSIVATE |
