Part Details | THREADED ROD END
5340-00-051-7054 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.
Alternate Parts: 38891, 3889-1, 5340-00-051-7054, 00-051-7054, 5340000517054, 000517054
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 13, 1967 | 00-051-7054 | 30474 ( ROD END, THREADED ) |
REFERENCE DRAWINGS & PICTURES

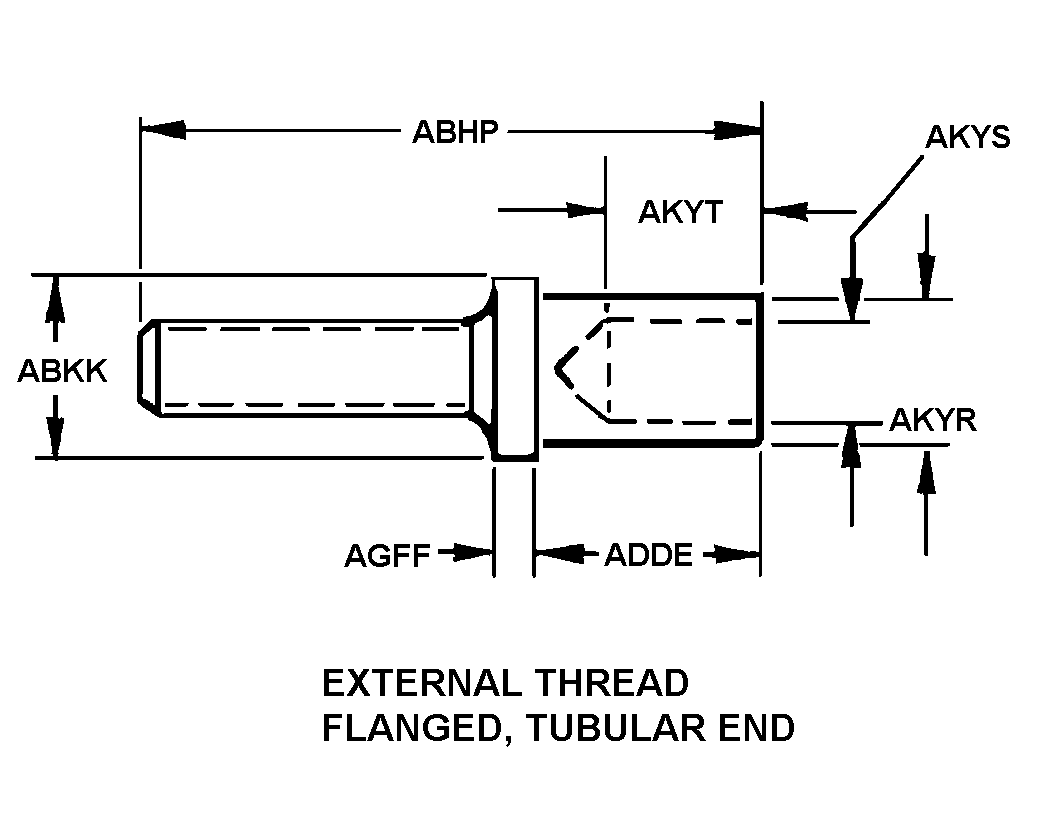

EXTERNAL THREAD, FLANGED, TUBULAR END
Cross Reference | NSN 5340-00-051-7054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3889-1 | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5340-00-051-7054
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | EXTERNAL THREAD, FLANGED, TUBULAR END |
| OVERALL LENGTH | 0.719 INCHES NOMINAL |
| FLANGE DIAMETER | 0.187 INCHES NOMINAL |
| UNTHREADED END LENGTH | 0.266 INCHES NOMINAL |
| FLANGE WIDTH | 0.063 INCHES NOMINAL |
| UNTHREADED END OUTSIDE DIAMETER | 0.180 INCHES NOMINAL |
| UNTHREADED END INSIDE DIAMETER | 0.140 INCHES NOMINAL |
| UNTHREADED END DEPTH | 0.300 INCHES NOMINAL |
