Part Details | SNAP HOOK
5340-00-056-1786 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 470, 5340-00-056-1786, 00-056-1786, 5340000561786, 000561786
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-056-1786 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES

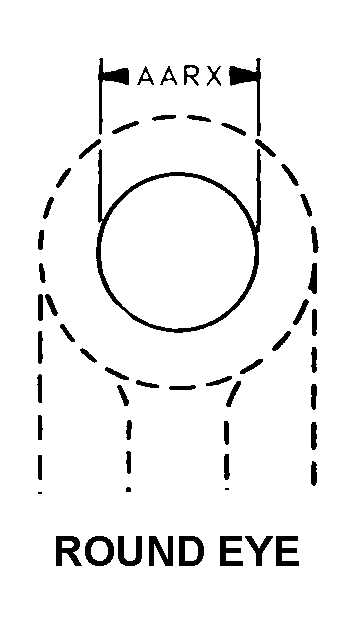

ROUND EYE
SLIDING BOLT
Cross Reference | NSN 5340-00-056-1786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 470 | 75347 | KLEIN TOOLS INC |
Technical Data | NSN 5340-00-056-1786
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | SLIDING BOLT |
| DESIGN TYPE | SWIVEL |
| END CONNECTION STYLE | 2 ROUND EYE |
| INSIDE WIDTH | 1.000 INCHES NOMINAL |
| HOOK MATERIAL | STEEL |
| CONNECTION END MATERIAL | STEEL |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
