Part Details | THREADED ROD END
5340-00-059-5532 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.
Alternate Parts: 63271, 6327-1, 5340-00-059-5532, 00-059-5532, 5340000595532, 000595532
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-059-5532 | 30474 ( ROD END, THREADED ) |
REFERENCE DRAWINGS & PICTURES

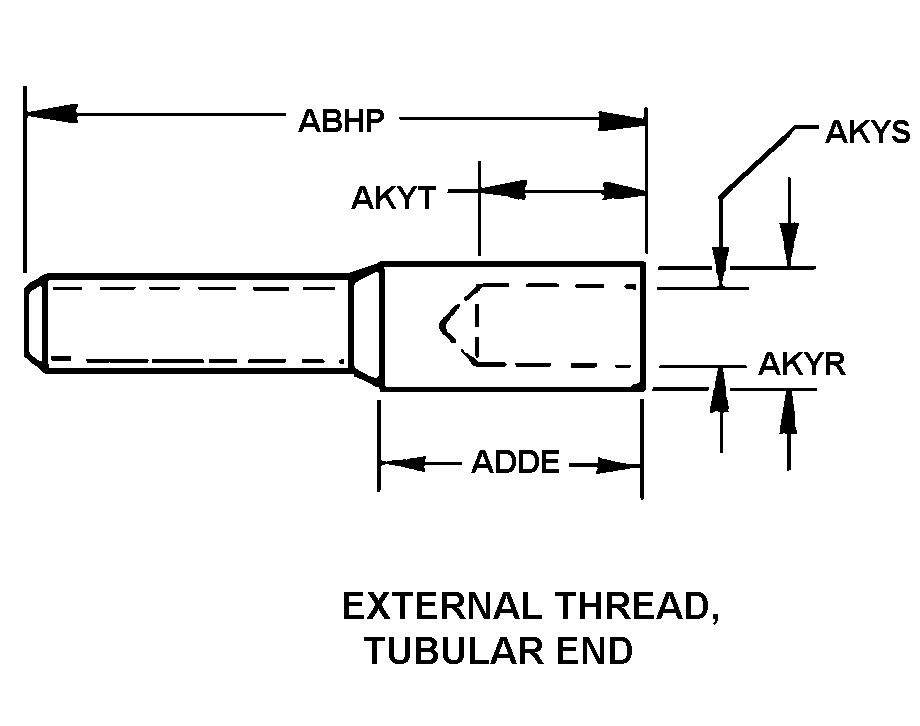

EXTERNAL THREAD, TUBULAR END
Cross Reference | NSN 5340-00-059-5532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6327-1 | 02121 | GOODRICH AEROSPACE CANADA LTDDBA GOODRICH LANDING GEAR |
Technical Data | NSN 5340-00-059-5532
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | EXTERNAL THREAD, TUBULAR END |
| OVERALL LENGTH | 5.240 INCHES NOMINAL |
| UNTHREADED END LENGTH | 2.928 INCHES NOMINAL |
| UNTHREADED END OUTSIDE DIAMETER | 2.200 INCHES NOMINAL |
| UNTHREADED END INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| UNTHREADED END DEPTH | 0.755 INCHES NOMINAL |
