Part Details | WEAPON SYSTEM ACCESS DOOR
5342-00-161-1632 A rigid item of various shapes permanently attached to a structure, designed to provide access for inspection, service, replacement of components and/or adjustments. It is designed to be attached by means of hinges or similar devices. It may include self-closing features and have a quick release or other type latching to permit access with a minimum of effort. It may include an observation window. Excludes COVER, ACCESS and DOOR, ACCESS, UTILITY.
Alternate Parts: 2587413, 5342-00-161-1632, 00-161-1632, 5342001611632, 001611632
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 29, 1971 | 00-161-1632 | 53557 ( DOOR, ACCESS, WEAPON SYSTEM ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

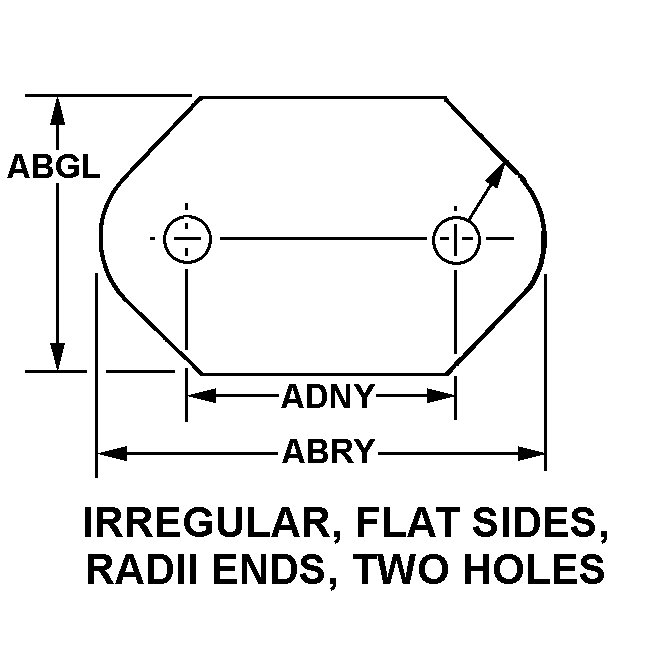

IRREGULAR, FLAT SIDES RADII ENDS, TWO HOLES
Cross Reference | NSN 5342-00-161-1632
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2587413 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5342-00-161-1632
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | IRREGULAR, FLAT SIDES RADII ENDS, TWO HOLES |
| LENGTH | 12.000 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 6.031 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 6 CIRCULAR RECESS |
| MATERIAL | ALUMINUM |
