Part Details | GROOVED CLAMP COUPLING
5342-00-675-2532 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Alternate Parts: 51823K, 5342-00-675-2532, 00-675-2532, 5342006752532, 006752532
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-675-2532 | 20319 ( COUPLING, CLAMP, GROOVED ) |
REFERENCE DRAWINGS & PICTURES
GROOVED RETAINER

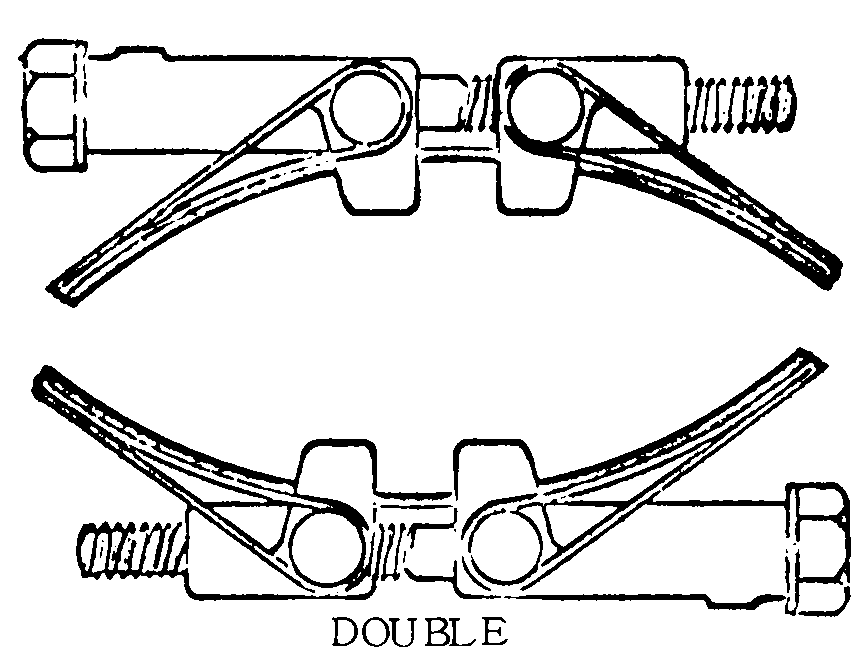

DOUBLE
Cross Reference | NSN 5342-00-675-2532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51823K | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
Technical Data | NSN 5342-00-675-2532
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | GROOVED RETAINER |
| RETAINER THICKNESS | 0.090 INCHES NOMINAL |
| RETAINER WIDTH | 3.000 INCHES NOMINAL |
| ROOT WIDTH | 0.265 INCHES NOMINAL |
| BAND THICKNESS | 0.090 INCHES NOMINAL |
| BAND WIDTH | 2.031 INCHES NOMINAL |
| HEIGHT | 0.703 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| SHAPE | ROUND |
| INSIDE DIAMETER | 22.688 INCHES NOMINAL |
| LATCH STYLE | DOUBLE |
| NUT TYPE | PLAIN HEXAGON |
| DRILLED LOCKWIRE HOLE | INCLUDED |
| SEGMENT QUANTITY | 2 |
| SEALING INNER LINER | NOT INCLUDED |
| MAXIMUM LOAD RATING | 5000.0 POUNDS |
